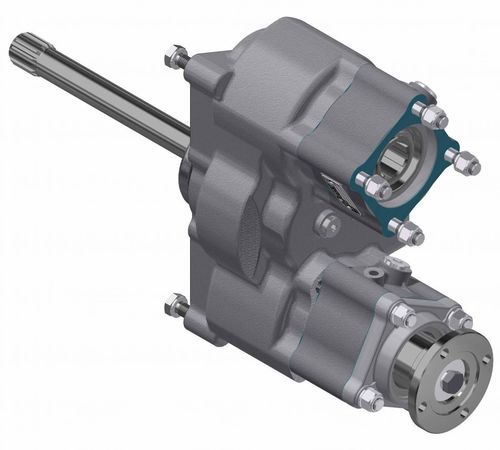

Power take-off for heavy-duty applications 1029950 Rear Pneumatic

high-torque

Description
Independent, twin-output PTO with internal ratio 1:1.60 and constant mesh. Pneumatic shifting. Rear mounting (9-bolt gearbox window). Optional passing contact and pressure switches.

Gearbox ratios
Engine to PTO ratio:
12TX TD: 1410 / 1610 / 1810 / 2010 / 2210 / 2420 / 2620 / 2820 — 16.69-1.0 — 1:1.22
12TX TO: 1610 / 1810 / 2010 / 2210 / 2410 / 2610 / 2820 / 3020 / 3220 / 3420 — 12.92-0.77 — 1:2.02
16TX TD: 1640 / 1840 / 2040 / 2240 / 2440 / 2640 / 2840 — 17.94-1.0 — 1:1.15
16TX TO: 1840 / 2040 / 2240 / 2440 / 2640 / 2840 / 3040 / 3240 / 3440 — 14.68-0.82 — 1:1.73

Additional information

• Torque (Nm): 500
• Max. Cont. Torque (both outputs working together): 600 Nm
• Power (1000 r.p.m.): 70C.V // 53kW
• Sense of rotation (Pump): ClockWise
• Sense of rotation (Flange): Anti ClockWise
• Weight (Kg): 15
• Mounting Position: Rear
• Note A: Air connection, thread 1/8 BSP
• Note B: Rotation
• Note C: Oil drain plug
• Note D: Flange drive
• Note E: Passing contact switch. P/N 9024999
• Note F: Pressure switch. P/N 100070018
• Gearbox options: 12TX-2610TO-12.92-0.77, 16TX-2640TD-17.94-1.0, 12TX-2620TD-16.69-1.0, 16TX-2640TO-14.68-0.82, 12TX-2820TD-16.69-1.0, 16TX-2840TD-17.94-1.0, 12TX-2820TO-12.92-0.77, 16TX-2840TO-14.68-0.82, 12TX-3020TO-12.92-0.77, 16TX-3040TO-14.68-0.82, 12TX-3220TO-12.92-0.77, 16TX-3240TO-14.68-0.82, 12TX-1410TD-16.69-1.0, 12TX-3420TO-12.92-0.77, 16TX-3440TO-14.68-0.82, 12TX-1610TD-16.69-1.0, 16TX-1640TD-17.94-1.0, 16TX-2410TO-12.92-0.77, 12TX-1610TO-12.92-0.77, 16TX-1840TD-17.94-1.0, 12TX-1810TD-16.69-1.0, 16TX-1840TO-14.68-0.82, 12TX-1810TO-12.92-0.77, 16TX-2040TD-17.94-1.0, 12TX-2010TD-16.69-1.0, 16TX-2040TO-14.68-0.82, 12TX-2010TO-12.92-0.77, 16TX-2240TD-17.94-1.0, 12TX-2210TD-16.69-1.0, 16TX-2240TO-14.68-0.82, 12TX-2210TO-12.92-0.77, 16TX-2440TD-17.94-1.0, 12TX-2420TD-16.69-1.0, 16TX-2440TO-14.68-0.82

Technical specifications

• SKU: 1029950
• Type: Independent, twin output PTO, constant mesh
• Internal ratio: 1:1.60
• Shifting: Pneumatic
• Mounting: Rear, 9-bolts (gearbox window)
• Optional equipment: Passing contact switch (P/N 9024999); Pressure switch (P/N 100070018)
• Torque (Nm): 500
• Max. continuous torque (both outputs): 600 Nm
• Power (1000 r.p.m.): 70C.V // 53kW
• Sense of rotation (Pump): ClockWise
• Sense of rotation (Flange): Anti ClockWise
• Weight: 15 Kg
• Air connection: thread 1/8 BSP
• Oil drain plug: yes
• Flange drive: yes
• Available gearbox options: see list above
