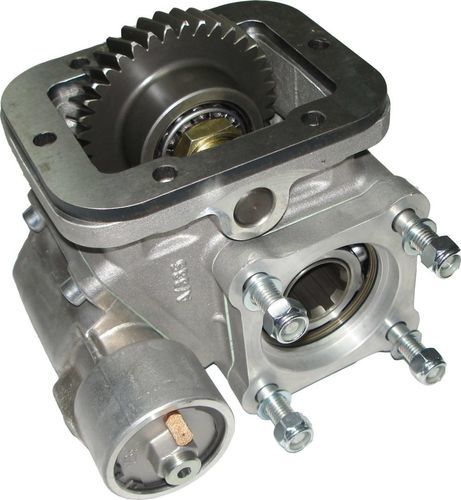

Horizontal power take-off 0611330

Description
Power take-off (PTO) with two gears in constant mesh, designed to drive UNI 3-bolt pumps. Available with electric, mechanical, pneumatic or vacuum shifting. Side-mounted on the left side of the gearbox.

Available shifter types / options

• Vacuum shifting
• Mechanical shifting
• Pneumatic shifting
• Solenoid-based electric (requires electric kit P/N 9094499)

Technical characteristics / specifications

• Continuous Torque (Nm): 120
• Intermittent Torque (Nm): 170
• Power (1000 r.p.m.): 17 HP // 13 kW
• Mounting Position: Left
• Pump rotation: L (anticlockwise)
• Weight (kg): 11
• Engine to PTO ratio: 1:1.3
• Output type: Pump (UNI)
• Shifter type: Vacuum shifting, Mechanical shifting, Pneumatic shifting, Solenoid-based electric (requires electric kit P/N 9094499)
• Gearbox: 5S-300, 5S-200, 2830.5
• Note A: Rotation
• Note B: Electric shifting
• Note C: Electric kit with button control P/N 9094499
• Note D: Passing contact switch P/N 100070028
• Note E: Engage PTO, thread 1/4” BSP
• Note F: Passing contact switch P/N 100070022
• Note G: Connector with 3 m of cable P/N 9026899
• Note H: Engage PTO, thread 1/8” BSP
• Note I: Mechanical shift
