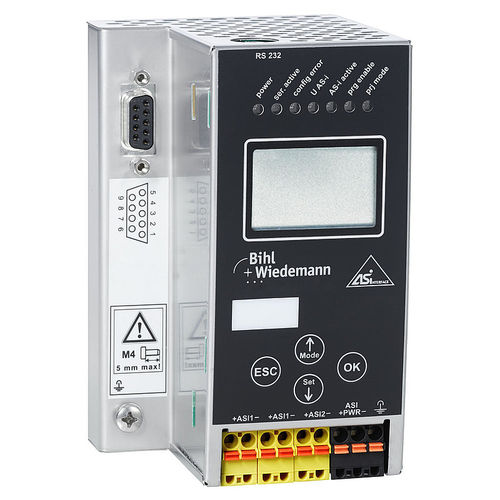

Communication gateway BWU1643

RS232ASiModbus

Extended diagnostics Save costs and space thanks to cost-effective 30 V power supplies and integrated decoupling coils Supply of 2 ASi circuits with 1 power supply Operation with standard 24 V power supply possible ASi-3 Modbus Gateway in Stainless Steel, 2 ASi masters, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, diagnostic and configuration via RS232 diagnostic interface, duplicate address recognition, ASi fault detector, IP20 Technical data Fieldbus interface - Modbus/RTU; RS 485 ASi-5/ASi-3 - ASi-3 compatible Number of ASi networks, number of ASi Master - 2 ASi networks, 2 ASi-3 Masters Integrated decoupling, ASi current measurement in the gateway - yes, max. 4 A/ASi network Inputs Safety, SIL 3, Cat. 4 - no local safe input Outputs Safety, SIL 3, cat. 4 - no local safe output Safety communication - no Safety communication
