Thermostatic test chamber MK 115

climatictemperaturelighting

Product description

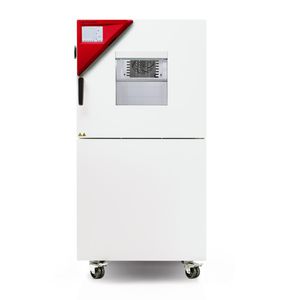

The BINDER MK 115 is a temperature cycling chamber designed for heat and cold tests ranging from -40 °C to +180 °C. It provides a compact 115 L working volume with APT.line™ preheating technology for homogeneous climate conditions and repeatable temperature cycles.

Benefits

• Homogeneous temperature distribution with APT.line™ preheating chamber
• Comprehensive programming, data acquisition and interfaces (Ethernet, USB)
• Heated viewing window with LED interior lighting for visual inspection

Key features

• Temperature range: -40 °C to +180 °C
• Intuitive touchscreen controller with time-segment and real-time programming
• Programmable condensation protection for test specimens
• Internal data logger; open-format data export via USB
• BINDER APT-COM™ Basic Edition for device management
• Visual and audible troubleshooting alarms; class 2 adjustable temperature safety device (DIN 12880)
• Heated viewing window, LED lighting and door heating
• Access port with 50 mm silicone plug (left)
• 4 castors (2 with brakes) for mobility
• Internal chamber and standard rack in stainless steel
• CFC-free refrigerant R-452A and compressor cooling

Technical specifications (summary)
Article Number: 9020-0375 / 9020-0303
Designation: MK115-400V / MK115-480V-C
Options: Standard / with voltage and frequency converter
Temperature range: -40 … +180 °C
Temperature uniformity (depends on set value): 0.1 … 2.0 ± K
Temperature fluctuation (depends on set value): 0.1 … 0.5 ± K
Average heating rate (IEC 60068-3-5): 5.3 K/min
Average cooling rate (IEC 60068-3-5): 5.0 K/min
Cooling time 180 °C → -40 °C: 90 min
Interior volume: 115 L
Interior dimensions (W×H×D): 600 × 480 × 400 mm
Net weight (empty): 255 kg
Rated power: 3.5 kW; Voltage options: 400 V (50 Hz) / 480 V (60 Hz)
Sound-pressure level: 62 dB(A) (400 V) / 67 dB(A) (480 V)
Energy consumption at 20 °C: 650 Wh/h
Number of shelves (std./max.): 1 / 4

Accessories & options

• Access ports in various diameters and positions
• Door lock (lockable handle)
• Dry-air purge and Pt100 additional sensors
• Analog output 4–20 mA, RS485 option
• Calibration certificates, IQ/OQ/PQ and maintenance/service packages
