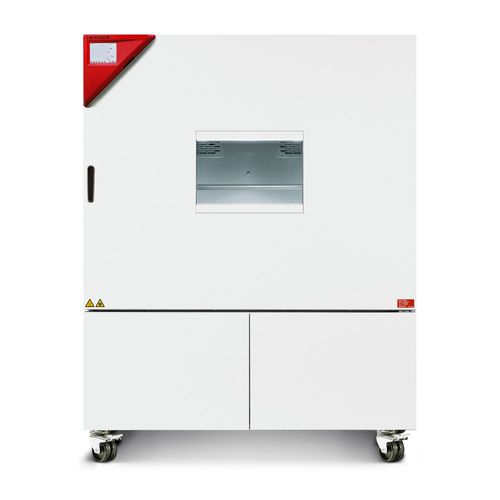

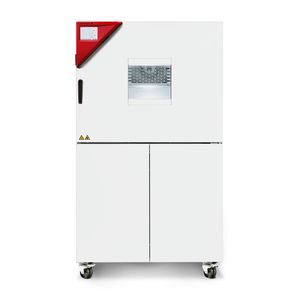

Climatic test chamber MK series
temperaturefor rapid temperature cyclingfor materials testing

Climatic test chamber - MK series - BINDER - temperature / for rapid temperature cycling / for materials testing
Climatic test chamber - MK series - BINDER - temperature / for rapid temperature cycling / for materials testing
Climatic test chamber - MK series - BINDER - temperature / for rapid temperature cycling / for materials testing - image - 2
Climatic test chamber - MK series - BINDER - temperature / for rapid temperature cycling / for materials testing - image - 3
Climatic test chamber - MK series - BINDER - temperature / for rapid temperature cycling / for materials testing - image - 4
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature
Test type
for rapid temperature cycling
Product applications
for materials testing
Application domain
for quality control
Light source
LED
Chamber material
stainless steel
Options and accessories
with window
Other characteristics
stainless steel
Capacity

Max.: 991 l
(261.79 gal)

Min.: 60 l
(15.85 gal)

Temperature

Max.: 180 °C
(356 °F)

Min.: -40 °C
(-40 °F)

Interior length

Max.: 1,200 mm
(47.24 in)

Min.: 400 mm
(15.75 in)

Interior height

Max.: 1,020 mm
(40.16 in)

Min.: 420 mm
(16.54 in)

Interior depth

Max.: 810 mm
(31.89 in)

Min.: 350 mm
(13.78 in)

External length

Max.: 1,579 mm
(62.2 in)

Min.: 732 mm
(28.8 in)

External height

Max.: 2,003 mm
(78.86 in)

Min.: 1,445 mm
(56.89 in)

External depth

Max.: 1,496 mm
(58.9 in)

Min.: 833 mm
(32.8 in)

Description

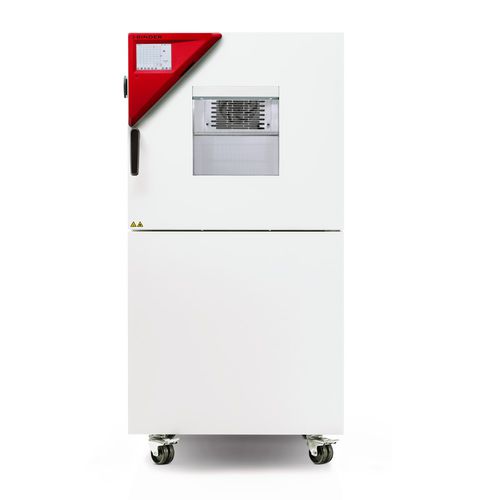

• Model MK 56 | Dynamic climate chambers for rapid temperature changes • Model MK 115 | Dynamic climate chambers for rapid temperature changes • Model MK 240 | Dynamic climate chambers for rapid temperature changes • Model MK 400 | Dynamic climate chambers for rapid temperature changes • Model MK 720 | Dynamic climate chambers for rapid temperature changes • Model MK 1020 | Dynamic climate chambers for rapid temperature changes The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests. • Temperature range: -40 °C to +180 °C • Homogeneous climate conditions thanks to APT.line™ technology •Comprehensive programming and data acquisition •Large heated viewing window
