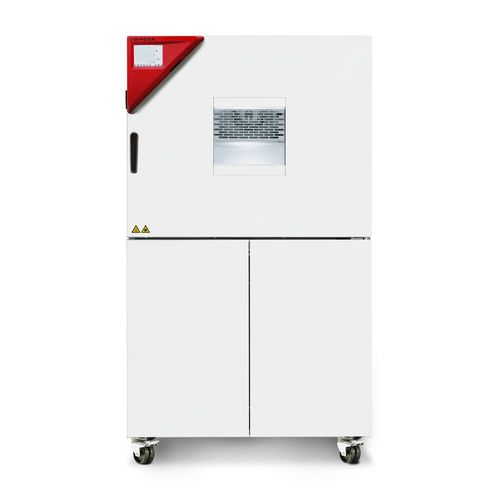

Climatic test chamber MKT 115

temperaturefor rapid temperature cyclingfor materials testing

Homogeneous climate conditions thanks to APT.line™ technology Comprehensive programming and data acquisition Large heated viewing window Product description Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests. Important characteristics 4 zero-voltage relay contacts APT.line™ preheating chamber technology Programmable condensation protection for test material Heated viewing window with LED interior lighting BINDER Multi Management software APT-COM™ Basic Edition Troubleshooting system with visual and audible alarms Intuitive touchscreen controller with time-segment and real-time programming Internal data logger, measured values can be read out in open format via USB Access port with silicone plug: 50 mm, left Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm 4 castors, two with brakes Computer interface: Ethernet Adjustable ramp function Integrated chart recorder Real-time clock Door heating 1 stainless steel rack Inner chamber made of stainless steel CFC-free refrigerants R-452A and R-23 Cooling with cascade compressor cooling unit
