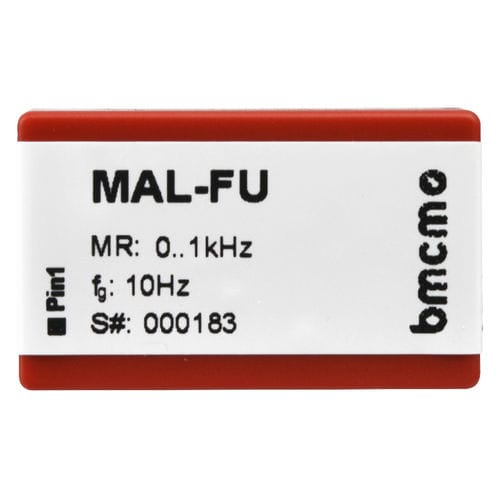

Frequency-to-voltage converter MAL-FU

CANcompactindustrial

FEATURES - size: 24-pin DIL IC - 50Hz bandwidth - galvanic isolation - input 4..25V - 3 measuring ranges 0..100Hz, 0..1kHz, 0..10kHz (configurable with jumpers) - output filter 6dB/oct. TRANSFORMED. FREQUENCY BECOMES VOLTAGE. Ideal for rotation measurement: The frequency/voltage converter measures frequencies and converts them into a proportional voltage signal, which is then adjusted to the input of a PC data acquisition system. MINIMUM SIZE. GREAT PERFORMANCE. SMALL PRICE. The miniature format of the MAL-FU is ideal to realize measurement applications even if the installation is in problematic locations. Despite the small size, the measuring amplifier features great functionality. All this at a reasonable price. 3 FREQUENCY RANGES. 0..5V OUT. Frequency ranges of 100Hz, 1kHz, or 10kHz can be configured for the MAL-FU via solder bridges. A frequency signal applied to the input generates a proportional voltage in the range of 0..5V at the output.
