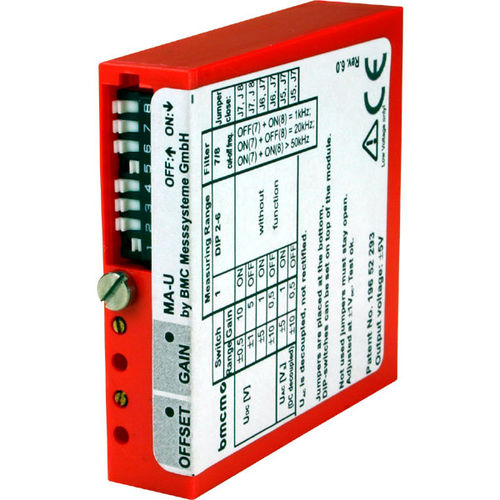

Voltage amplifier MA-U
measuringacquisitionelectronic

voltage amplifier
voltage amplifier
voltage amplifier
voltage amplifier
Add to favorites
Compare this product

Characteristics

Type
voltage
Secondary function
measuring, acquisition
Other characteristics
electronic, adjustable, isolated, for sensors, rack-mount
Voltage

10 V

Frequency

50 kHz

Description

FEATURES - 50kHz bandwidth - 5B compatible - galvanic isolation - for voltage measurements - 3 switchable filter cut-off frequencies - 4 switchable input ranges (max. ±10V) - adjustable with potentiometers - 4mA power source or ±12V DC or +5V for sensor supply - DC or AC decoupled - reusable for other measuring tasks CONDITIONED TO VOLTAGE. The measuring amplifier MA-U adjusts voltage signals to the 5V input of a PC data acquisition system. To emphasize is the extremely large bandwidth of 50kHz so that even slightest peaks of high-frequent signals do not remain undetected. 5B TECHNOLOGY. INDUSTRIAL STANDARD. The pin assignment of the 5B module corresponds to the 5B module standard of Analog Devices and Burr Brown. An additional 0EX pin has been introduced for sensors requiring unipolar supply to be suitable for connection. YOU HAVE THE CHOICE. Four input voltage ranges from ±0.5V to ±10V are provided by the MA-U. DC voltage as well as AC voltage can be connected. Three filter cut-off frequencies for the output filter are provided. CLEARLY SAFE. If using several modules, the channels are galvanically isolated to each other and to the DAQ system. This perfectly protects the whole system against high potentials and interferences.
