Rubber rubber sheet 7911
for high temperaturesUV-resistant

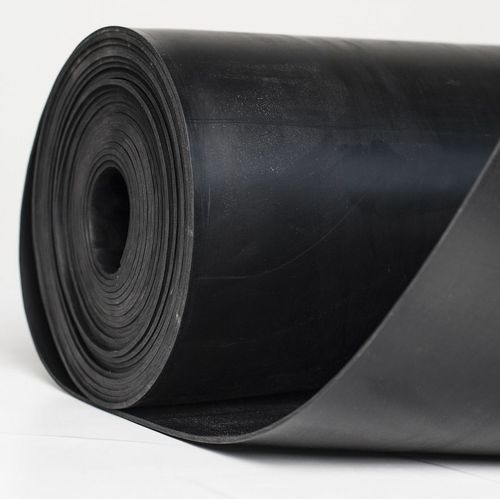

Rubber rubber sheet - 7911 - BOGUMA, s.r.o. - for high temperatures / UV-resistant

Rubber rubber sheet - 7911 - BOGUMA, s.r.o. - for high temperatures / UV-resistant - image - 2

Rubber rubber sheet - 7911 - BOGUMA, s.r.o. - for high temperatures / UV-resistant - image - 3

Rubber rubber sheet - 7911 - BOGUMA, s.r.o. - for high temperatures / UV-resistant - image - 4

Rubber rubber sheet - 7911 - BOGUMA, s.r.o. - for high temperatures / UV-resistant - image - 5

Add to favorites

Compare this product

Characteristics

Material

rubber

Other characteristics

for high temperatures, UV-resistant

Thickness

Max.: 15 mm
(0.591 in)

Min.: 1 mm
(0.039 in)

Density

1,140 kg/m³
(71 lb/ft³)

Working temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Sealing plate suitable for outdoor use. Resistant to high temperatures, weathering, ultraviolet radiation, acids and alkalis. Made on the basis of EPDM with various physico-mechanical properties. With the possibility of specifying the required thickness (1 - 15 mm), width (1,200 - 1,400 mm) and number of inserts (0 - 2 pcs). Complete the exact specification in the configurator. - Environment: Outdoor - Density: 1.14 g/cm³ - Temperature range: -40°C to +125°C - Hardness: 60 ± 5 Shore A - Elongation: 400% - Tensile strength: 12 MPa - Thickness: 1 — 15 mm (tolerance varies by thickness, see table below) Length (m) | Width (mm) | Thickness (mm) | Weight (kg/m²) | Density (g/cm³) | Number of inserts ---|---|---|---|---|--- 20 | 1200 | 1 | 1.2 | 1.14 | 00 20 | 1400 | 1 | 1.2 | 1.14 | 00 20 | 1200 | 1.5 | 1.7 | 1.14 | 00 20 | 1400 | 1.5 | 1.7 | 1.14 | 00 10 | 1200 | 2 | 2.3 | 1.14 | 00/1T 10 | 1400 | 2 | 2.3 | 1.14 | 00/1T 10 | 1200 | 3 | 3.7/3.4 | 1.14 | 00/1T/2T 10 | 1400 | 3 | 3.7/3.4 | 1.14 | 00/1T/2T 10 | 1200 | 4 | 4.5/4.6 | 1.14 | 00/1T/2T 10 | 1400 | 4 | 4.5/4.6 | 1.14 | 00/1T/2T 10 | 1200 | 5 | 5.8/5.7 | 1.14 | 00/1T/2T 10 | 1400 | 5 | 5.8/5.7 | 1.14 | 00/1T/2T 10 | 1200 | 6 | 7.1/6.8 | 1.14 | 00/1T/2T 10 | 1400 | 6 | 7.1/6.8 | 1.14 | 00/1T/2T 10 | 1200 | 8 | 9.5/9.1 | 1.14 | 00/1T/2T 10 | 1400 | 8 | 9.5/9.1 | 1.14 | 00/1T/2T 10 | 1200 | 10 | 11.7/11.4 | 1.14 | 00/1T/2T 10 | 1400 | 10 | 11.7/11.4 | 1.14 | 00/1T/2T 5 | 1200 | 12 | 15.3/13.7 | 1.14 | 00/1T/2T 5 | 1400 | 12 | 15.3/13.7 | 1.14 | 00/1T/2T 5 | 1200 | 15 | 19.3/17.1 | 1.14 | 00/1T/2T 5 | 1400 | 15 | 19.3/17.1 | 1.14 | 00/1T/2T - Color: Black - Material: EPDM - Reinforcement layers: 0, 1T, or 2T (depending on variant) - Surface: Smooth - Customizable: Thickness (1-15 mm), Width (1200-1400 mm), Length (5-20 m), Number of reinforcement layers (0-2) - Documents available: Datasheet, EU Declaration of Conformity Technical Specifications: - Material: EPDM - Color: Black - Density: 1.14 g/cm³ - Hardness: 60 ± 5 Shore A - Elongation: 400% - Tensile strength: 12 MPa - Temperature range: -40°C to +125°C - Thickness: 1 — 15 mm - Width: 1200 — 1400 mm - Length: 5 — 20 m - Reinforcement layers: 0, 1T, 2T
