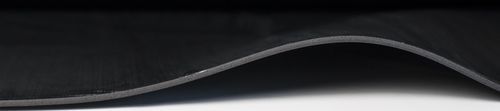

EPDM gasket sheet 7815

thermal insulationfor sealing profilesbuilding

Product description
Sealing plate for outdoor use. Resistant to high temperatures, weathering, UV radiation, acids and alkalis. Manufactured from EPDM with tailored physico-mechanical properties. Available thickness range 1–15 mm, widths 1200 or 1400 mm and lengths 5, 10 or 20 m. Reinforcement layer options: 00, 1T, 2T. Specify required dimensions and inserts when ordering.

Key features

• Material: EPDM
• Colour: black
• Application: exterior sealing and thermal insulation
• Temperature range: -40 — +125 °C
• Density: 1.22
• Hardness (ShA): 60 ± 5
• Elongation at break: 400 %
• Tensile strength: 10 MPa
• Thickness options: 1; 1.5; 2; 3; 4; 5; 6; 8; 10; 12; 15 mm
• Widths: 1200 mm, 1400 mm
• Lengths: 20 m, 10 m, 5 m
• Reinforcement: 00, 1T, 2T (0–2 layers)

Variants table (rows: Id | Item number | Old number | Group | Type | Rubber | Color | Length [m] | Width [mm] | Thickness [mm] | Thickness tolerance | Weight [kg] | Density | Number of inserts | Number of prints)
685 | TD_7815_00_0_01-0 | TD 7815 | TD | 7815 | EPDM | black | 20 | 1200 | 1 | (+/- 0.2 mm) | 1.2 | 1.22 | 00 | 0 | 686 | TD_7815_00_0_01-0 | TD 7815 | TD | 7815 | EPDM | black | 20 | 1400 | 1 | (+/- 0.2 mm) | 1.2 | 1.22 | 00 | 0 | 689 | TD_7815_00_0_01-5 | TD 7815 | TD | 7815 | EPDM | black | 20 | 1200 | 1.5 | (+/- 0.2 mm) | 1.9 | 1.22 | 00 | 0 | 693 | TD_7815_00_0_02-0 | TD 7815 | TD | 7815 | EPDM | black | 10 | 1200 | 2 | (+/- 0.2 mm) | 2.5 | 1.22 | 00 | 0 | 699 | TD_7815_1T_0_03-0 | TD 7815 | TD | 7815 | EPDM | black | 10 | 1200 | 3 | (+/- 0.3 mm) | 3.9 | 1.22 | 1T | 0 | 709 | TD_7815_00_0_05-0 | TD 7815 | TD | 7815 | EPDM | black | 10 | 1200 | 5 | (+/- 0.5 mm) | 6.0 | 1.22 | 00 | 0 | 727 | TD_7815_00_0_10-0 | TD 7815 | TD | 7815 | EPDM | black | 10 | 1200 | 10 | (+/- 0.6 mm) | 12.2 | 1.22 | 00 | 0 | 733 | TD_7815_00_0_12-0 | TD 7815 | TD | 7815 | EPDM | black | 5 | 1200 | 12 | (+/- 1.0 mm) | 16.4 | 1.22 | 00 | 0 | 739 | TD_7815_00_0_15-0 | TD 7815 | TD | 7815 | EPDM | black | 5 | 1200 | 15 | (+/- 1.0 mm) | 20.6 | 1.22 | 00 | 0

Technical specifications

• Material: EPDM
• Colour: Black
• Density: 1.22
• Temperature range: -40 — +125 °C
• Hardness (ShA): 60 ± 5
• Elongation at break: 400 %
• Tensile strength: 10 MPa
• Thickness options: 1; 1.5; 2; 3; 4; 5; 6; 8; 10; 12; 15 mm
• Widths: 1200, 1400 mm
• Lengths: 5, 10, 20 m
• Reinforcement layers: 00, 1T, 2T
• Typical tolerances: thickness tolerances vary by thickness (±0.2–1.0 mm)
