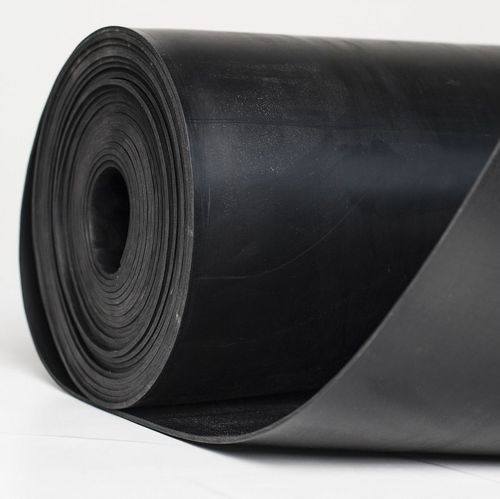

Rubber rubber sheet 7750

abrasion-resistantwear-resistant

Sealing plate for general use with the added property of high abrasion resistance (120 mm³) and above-standard tensile strength. Made on the basis of a rubber mixture of NR, SBR and BR with various chemical and physical-mechanical properties. With the possibility of specifying the required thickness (1 - 15 mm), width (1,200 - 1,400 mm) and number of inserts (0 - 2 pcs). Complete the exact specification in the configurator. - Environment: Interior - Density: 1.15 g/cm³ - Temperature range: -25°C to +70°C - Hardness: 60 ± 5 Shore A - Elongation: 400% - Tensile strength: 17 MPa - Thickness: 1 — 15 mm Variants (examples): Length (m) | Width (mm) | Thickness (mm) | Weight (kg) | Density (g/cm³) | Number of inserts ---|---|---|---|---|--- 20 | 1200 | 1 | 1.1 | 1.15 | 00 10 | 1200 | 2 | 2.2 | 1.15 | 00 10 | 1200 | 3 | 3.5 | 1.15 | 00 10 | 1200 | 4 | 4.6 | 1.15 | 00 10 | 1200 | 5 | 5.7 | 1.15 | 00 10 | 1200 | 6 | 6.9 | 1.15 | 00 10 | 1200 | 8 | 9.2 | 1.15 | 00 10 | 1200 | 10 | 11.9 | 1.15 | 00 5 | 1200 | 12 | 14.5 | 1.15 | 00 5 | 1200 | 15 | 17.2 | 1.15 | 00 - Color: Black - Material: NR-SBR-BR rubber blend - Reinforcement layers: 0, 1T, or 2T (optional) - Cloth prints: 0 Technical Specifications: - High abrasion resistance (120 mm³) - Above-standard tensile strength (17 MPa) - Elongation at break: 400% - Hardness: 60 ± 5 Shore A - Density: 1.15 g/cm³ - Temperature range: -25°C to +70°C - Thickness: 1–15 mm (tolerance varies by thickness) - Width: 1200 or 1400 mm (tolerance ±10 mm) - Length: 5, 10, or 20 m (tolerance ±200 mm) - Number of reinforcement layers: 0, 1T, 2T - Color: Black - Material: NR-SBR-BR
