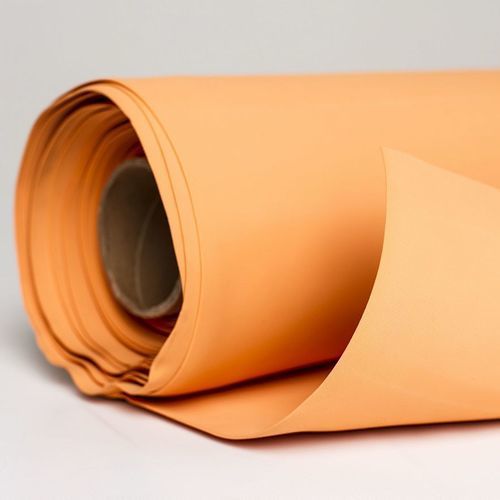

Custom-made insulating blanket 7661

EPDM

Product Details: Sealing plate suitable for outdoor use. Resistant to high temperatures, weathering, ultraviolet radiation, acids and alkalis. Made on the basis of EPDM-NR with various physico-mechanical properties. With the possibility of specifying the required thickness (1 - 6 mm), width (1,200 - 1,400 mm) and number of inserts (0 - 2 pcs). Click and choose. Complete the exact specification in the configurator. - Environment: Interior - Density: 1.15 g/cm³ - Temperature range: -40 — +125 °C - Hardness: 65 ± 5 Shore A - Elongation: 650% - Tensile strength: 12 MPa - Thickness: 1 — 6 mm Available Variants (examples): Length (m) | Width (mm) | Thickness (mm) | Weight (kg/m²) | Density (g/cm³) | Number of Inserts | Color 20 | 1200 | 1 | 1.1 | 1.15 | 00 | orange 20 | 1400 | 1 | 1.1 | 1.15 | 00 | orange 20 | 1200 | 1.5 | 1.7 | 1.15 | 00 | orange 20 | 1400 | 1.5 | 1.7 | 1.15 | 00 | orange 10 | 1200 | 2 | 2.3 | 1.15 | 00 | orange 10 | 1400 | 2 | 2.3 | 1.15 | 00 | orange 10 | 1200 | 3 | 3.5 | 1.15 | 00 | orange 10 | 1400 | 3 | 3.5 | 1.15 | 00 | orange 10 | 1200 | 4 | 4.6 | 1.15 | 00 | orange 10 | 1400 | 4 | 4.6 | 1.15 | 00 | orange 10 | 1200 | 5 | 5.7 | 1.15 | 00 | orange 10 | 1400 | 5 | 5.7 | 1.15 | 00 | orange 10 | 1200 | 6 | 6.9 | 1.15 | 00 | orange 10 | 1400 | 6 | 6.9 | 1.15 | 00 | orange - Thickness tolerance: (+/- 0.2 to 0.5 mm depending on thickness) - Width tolerance: (+/- 10 mm) - Length tolerance: (+/- 200 mm) Technical Specifications: - Material: EPDM-NR - Color: Orange - Thickness: 1–6 mm - Width: 1200–1400 mm - Length: 10–20 m - Density: 1.15 g/cm³ - Hardness: 65 ± 5 Shore A - Elongation: 650% - Tensile strength: 12 MPa - Temperature range: -40 — +125 °C - Number of reinforcement layers: 0–2 - Number of cloth prints: 0
