EPDM-NR rubber sheet 7816
custom-madefood grade

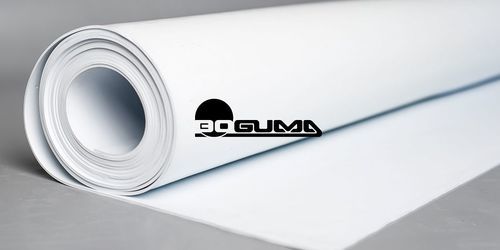

EPDM-NR rubber sheet - 7816 - BOGUMA, s.r.o. - custom-made / food grade
EPDM-NR rubber sheet - 7816 - BOGUMA, s.r.o. - custom-made / food grade
EPDM-NR rubber sheet - 7816 - BOGUMA, s.r.o. - custom-made / food grade - image - 2
EPDM-NR rubber sheet - 7816 - BOGUMA, s.r.o. - custom-made / food grade - image - 3
EPDM-NR rubber sheet - 7816 - BOGUMA, s.r.o. - custom-made / food grade - image - 4
EPDM-NR rubber sheet - 7816 - BOGUMA, s.r.o. - custom-made / food grade - image - 5
Add to favorites
Compare this product
Go to the BOGUMA, s.r.o. website for more information

Characteristics

Material
EPDM-NR
Other characteristics
custom-made, food grade
Thickness

Min.: 1 mm
(0.039 in)

Max.: 10 mm
(0.394 in)

Density

1,270 kg/m³
(79 lb/ft³)

Working temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

Product overview
Sealing plate manufactured in white food-grade quality. Complies with Article 3 of Regulation (EC) No. 1935/2004 on materials and articles intended to come into contact with food. Produced from EPDM-NR with defined physical and mechanical properties. Customizable thickness (1–10 mm), width (1,200 or 1,400 mm) and standard lengths (10 m or 20 m); available insert options: 00, 1T, 2T.

Available variants (table)
Id | Item number | Old number | Group | Type | Rubber | Color | Length [m] | Width [mm] | Thickness [mm] | Thickness description | Weight [kg] | Density | Number of inserts | Number of prints
997 | TD_7816_00_0_01-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 20 | 1200 | 1 | (+/- 0,2 mm) | 1.2 | 1,27 | 00 | 0
998 | TD_7816_00_0_01-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 20 | 1400 | 1 | (+/- 0,2 mm) | 1.2 | 1,27 | 00 | 0
1001 | TD_7816_00_0_01-5 | TD 7816 | TD | 7816 | EPDM-NR | white | 20 | 1200 | 1.5 | (+/- 0,2 mm) | 2.1 | 1,27 | 00 | 0
1002 | TD_7816_00_0_01-5 | TD 7816 | TD | 7816 | EPDM-NR | white | 20 | 1400 | 1.5 | (+/- 0,2 mm) | 2.1 | 1,27 | 00 | 0
1005 | TD_7816_00_0_02-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 2 | (+/- 0,2 mm) | 2.5 | 1,27 | 00 | 0
1006 | TD_7816_00_0_02-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 2 | (+/- 0,2 mm) | 2.5 | 1,27 | 00 | 0
1007 | TD_7816_1T_0_02-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 2 | (+/- 0,2 mm) | 2.5 | 1,27 | 1T | 0
1008 | TD_7816_1T_0_02-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 2 | (+/- 0,2 mm) | 2.5 | 1,27 | 1T | 0
1009 | TD_7816_00_0_03-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 3 | (+/- 0,3 mm) | 3.8 | 1,27 | 00 | 0
1010 | TD_7816_00_0_03-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 3 | (+/- 0,3 mm) | 3.8 | 1,27 | 00 | 0
1011 | TD_7816_1T_0_03-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 3 | (+/- 0,3 mm) | 3.8 | 1,27 | 1T | 0
1012 | TD_7816_1T_0_03-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 3 | (+/- 0,3 mm) | 3.8 | 1,27 | 1T | 0
1013 | TD_7816_2T_0_03-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 3 | (+/- 0,3 mm) | 3.8 | 1,27 | 2T | 0
1014 | TD_7816_2T_0_03-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 3 | (+/- 0,3 mm) | 3.8 | 1,27 | 2T | 0
1015 | TD_7816_00_0_04-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 4 | (+/- 0,4 mm) | 5 | 1,27 | 00 | 0
1016 | TD_7816_00_0_04-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 4 | (+/- 0,4 mm) | 5 | 1,27 | 00 | 0
1017 | TD_7816_1T_0_04-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 4 | (+/- 0,4 mm) | 5.1 | 1,27 | 1T | 0
1018 | TD_7816_1T_0_04-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 4 | (+/- 0,4 mm) | 5.1 | 1,27 | 1T | 0
1019 | TD_7816_2T_0_04-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 4 | (+/- 0,4 mm) | 5.1 | 1,27 | 2T | 0
1020 | TD_7816_2T_0_04-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 4 | (+/- 0,4 mm) | 5.1 | 1,27 | 2T | 0
1021 | TD_7816_00_0_05-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 5 | (+/- 0,5 mm) | 6.3 | 1,27 | 00 | 0
1022 | TD_7816_00_0_05-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 5 | (+/- 0,5 mm) | 6.3 | 1,27 | 00 | 0
1023 | TD_7816_1T_0_05-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 5 | (+/- 0,5 mm) | 6.3 | 1,27 | 1T | 0
1024 | TD_7816_1T_0_05-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 5 | (+/- 0,5 mm) | 6.3 | 1,27 | 1T | 0
1025 | TD_7816_2T_0_05-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 5 | (+/- 0,5 mm) | 6.3 | 1,27 | 2T | 0
1026 | TD_7816_2T_0_05-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 5 | (+/- 0,5 mm) | 6.3 | 1,27 | 2T | 0
1027 | TD_7816_00_0_06-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 6 | (+/- 0,5 mm) | 7.5 | 1,27 | 00 | 0
1028 | TD_7816_00_0_06-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 6 | (+/- 0,5 mm) | 7.5 | 1,27 | 00 | 0
1029 | TD_7816_1T_0_06-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 6 | (+/- 0,5 mm) | 7.6 | 1,27 | 1T | 0
1030 | TD_7816_1T_0_06-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 6 | (+/- 0,5 mm) | 7.6 | 1,27 | 1T | 0
1031 | TD_7816_2T_0_06-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 6 | (+/- 0,5 mm) | 7.6 | 1,27 | 2T | 0
1032 | TD_7816_2T_0_06-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 6 | (+/- 0,5 mm) | 7.6 | 1,27 | 2T | 0
1033 | TD_7816_00_0_08-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 8 | (+/- 0,8 mm) | 10.1 | 1,27 | 00 | 0
1034 | TD_7816_00_0_08-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 8 | (+/- 0,8 mm) | 10.1 | 1,27 | 00 | 0
1035 | TD_7816_1T_0_08-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 8 | (+/- 0,8 mm) | 10.2 | 1,27 | 1T | 0
1036 | TD_7816_1T_0_08-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 8 | (+/- 0,8 mm) | 10.2 | 1,27 | 1T | 0
1037 | TD_7816_2T_0_08-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 8 | (+/- 0,8 mm) | 10.2 | 1,27 | 2T | 0
1038 | TD_7816_2T_0_08-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 8 | (+/- 0,8 mm) | 10.2 | 1,27 | 2T | 0
1039 | TD_7816_00_0_10-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 10 | (+/- 0,8 mm) | 12.6 | 1,27 | 00 | 0
1040 | TD_7816_00_0_10-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 10 | (+/- 0,8 mm) | 12.6 | 1,27 | 00 | 0
1041 | TD_7816_1T_0_10-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 10 | (+/- 0,8 mm) | 12.7 | 1,27 | 1T | 0
1042 | TD_7816_1T_0_10-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 10 | (+/- 0,8 mm) | 12.7 | 1,27 | 1T | 0
1043 | TD_7816_2T_0_10-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1200 | 10 | (+/- 0,8 mm) | 12.7 | 1,27 | 2T | 0
1044 | TD_7816_2T_0_10-0 | TD 7816 | TD | 7816 | EPDM-NR | white | 10 | 1400 | 10 | (+/- 0,8 mm) | 12.7 | 1,27 | 2T | 0

Notes
Product variants cover thicknesses from 1 mm to 10 mm, widths 1200 or 1400 mm and standard lengths 10 m or 20 m depending on variant. Inserts (reinforcement layers) available as 00, 1T or 2T; number of cloth prints listed variants = 0. EU declaration of conformity and technical data sheet available on request.

Technical specifications
  • Material: EPDM-NR (food grade)
  • Color: white
  • Density: 1.27 g/cm³
  • Temperature range: -40 to +125 °C
  • Hardness: 60 ± 5 (ShA)
  • Elongation at break: 400 %
  • Tensile strength: 6 MPa
  • Available thickness: 1–10 mm (tolerance varies by thickness, see variant table)
  • Available widths: 1200 mm, 1400 mm
  • Available lengths: 10 m, 20 m
