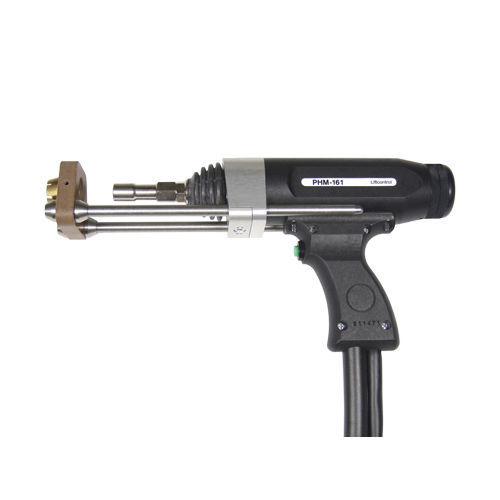

Stud welding gun PHM-161

automaticcompact

The compact stud welding gun PHM-161 is designed for stud welding with ceramic ferrule or with shielding gas. It guarantees optimum welding results and repeatability and is very easy to use. For flexible adjustment to different welding tasks a comprehensive range of accessories is available. The PHM-161 stands out through its robust construction and high reliability. Its ergonomic design and low weight assure tireless working. It is equipped as standard with an adjustable hydraulic damper to regulate the immersion speed of the stud into the welding pool. highest operational repeatability, high welding quality, high reliability automatic length compensation system for different stud lengths and surface conditions continuously adjustable hydraulic damper to regulate the immersion speed of the stud into the welding pool highest stud positioning accuracy through precision linear ball track of gun piston simple handling quick and simple retooling extremely quick welding sequences by reinforced solenoid all stud types weldable (special chuck might be required) high service life through high-grade mechanical components robust housing made from impact resistant, full-insulating plastics 50 mm² welding cable plugs in order to prevent burnt contacts precision guidance protected from welding spatters electronically controlled automatic lift ergonomic design compact construction low weight
