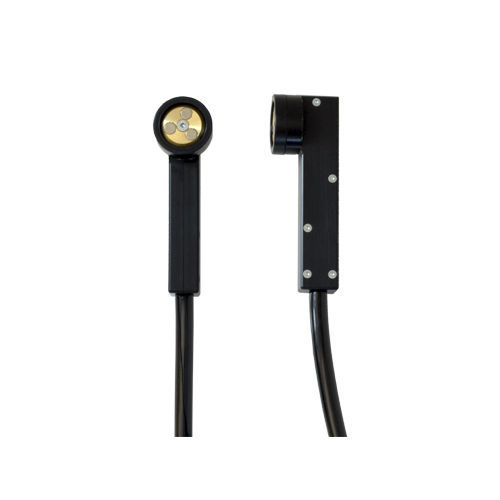

Stud welding gun PIM-1K

automaticcompactcapacitor discharge

The PIM-1K is a very small and very compact stud welding gun (welding method: capacitor discharge (contact)) for welding cupped head pins (insulation nails with clip) to fasten insulation mats. It was specially designed (length: only 43 mm, weight: only 200g) to enable welding in difficult to access areas. The cupped head pins are put onto the chuck and pushed through the insulation mat. At a certain surface pressure the welding is automatically triggered. The PIM-1K stands out through its simple handling, its robust construction and its high reliability. Its ergonomic design and low weight assure tireless working. small and compact → length: only 43 mm → weight: only 200 g → for welding in difficult to access areas very well suited for welding on problematic surfaces (e.g. zinc, tinder) automatic triggering of welding procedure when correct surface pressure of cupped head pin to base material is reached highest operational repeatability, high welding quality, high reliability simple handling high service life through high-grade mechanical components robust housing made from impact resistant, full-insulating plastics 50 mm² welding cable plugs in order to prevent burnt contacts precision guidance protected from welding spatters ergonomic design
