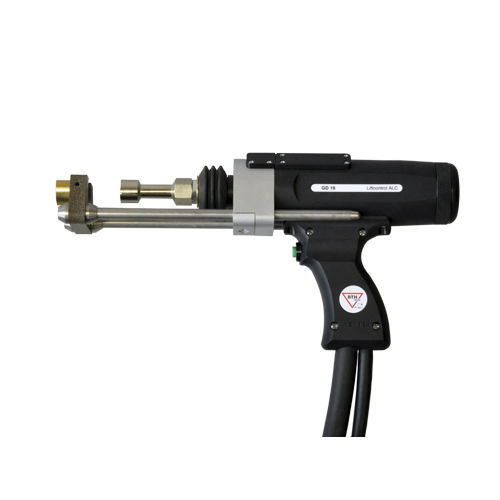

The stud welding gun GD 16 is designed for drawn arc stud welding up to a diameter of 16 mm. The adjustable lift (adjustment range: 0-4 mm) and the adjustable hydraulic piston damper enable the perfect set up for each welding task. In connection with the piston with linear ball track, the ample-dimensioned welding cable (cable cross section: 50 mm²) and the automatic length compensation the new GD 16 guarantees always perfect welding results.
Highlight of the new gun is the integrated travel measuring system (optional). Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud travel (lift, piston runtime, immersion depth) for each weld.
The GD 16 convinces by easy handling, high reliability and an ergonomic design. The robust construction ensures a smooth running even under stringent conditions.
adjustable lift (raster 0,3 mm) with very large adjustment range (0-4 mm)
continuously adjustable hydraulic piston damper to regulate the immersion speed of the stud into the welding pool
welding cable with cable cross-section 50 mm²
automatic length compensation system for different stud lengths and surface conditions
optional: integrated travel measuring system
- facilitates lift adjustment
- enables a quality monitoring by measuring stud travel (lift, piston runtime, immersion depth) for each weld
highest operational repeatability, high welding quality, high reliability
simple handling
quick and simple retooling
extremely quick welding sequences by reinforced solenoid
all stud types weldable (special chuck might be required)
piston with linear ball track
