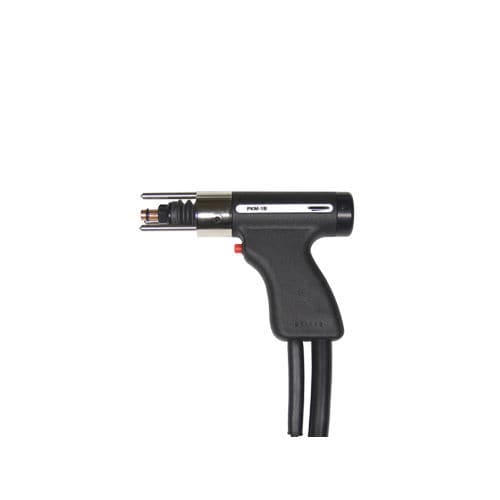

Stud welding gun PKM-1B

compactcapacitor discharge

The compact stud welding gun PKM-1B is designed for capacitor discharge stud welding (contact method). It guarantees optimum welding results and repeatability and is very easy to use. The PKM-1B stands out through its robust construction and high reliability. Its ergonomic design and low weight assure tireless working. very well suited for welding on problematic surfaces (e.g. zinc, tinder) spring pressure adjustable indication of adjusted spring pressure in sight window highest operational repeatability, high welding quality, high reliability highest stud positioning accuracy through precise slide-bearing guide of gun piston simple handling quick and simple retooling all stud types weldable (special chuck might be required) robust housing made from impact resistant, full-insulating plastics 50 mm² welding cable plugs in order to prevent burnt contacts recision guidance protected from welding spatters ergonomic design low weight optional: precision linear ball track of gun piston
