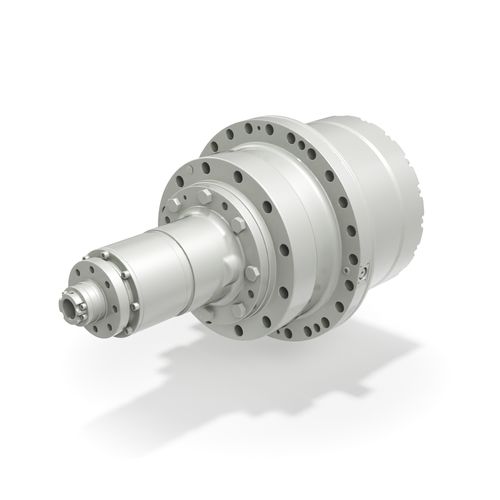

Planetary gear reducer FA seriesparallel-shafthollow-shaft> 10 kNm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- parallel-shaft
- Shaft configuration
- hollow-shaft
- Torque
- > 10 kNm
- Configuration
- compact, modular
- Applications
- drive, machine, for cutting machines
- Power
Max.: 1,200 kW
(1,631.55 hp)Min.: 80 kW
(108.77 hp)- Gear ratio
Max.: 26 unit
Min.: 16 unit
Description
Dual stage planetary drive units with integrated pulley support, designed for cold planers, milling machines and surface mining machines with engine power from 80 to 1200kW and different rotor widths. The offset input option ensures higher machine productivity due to the increased cutting depth. The shiftable 2 speed solution allows two possible cutting speeds with huge benefits in terms of machine performance.
Key features
Compact structure
High performance
Notchless ground tooth root
Different ratios
Integrated disc-brake
High availability by highest teeth and production quality
Suitable for various hydraulic motors
