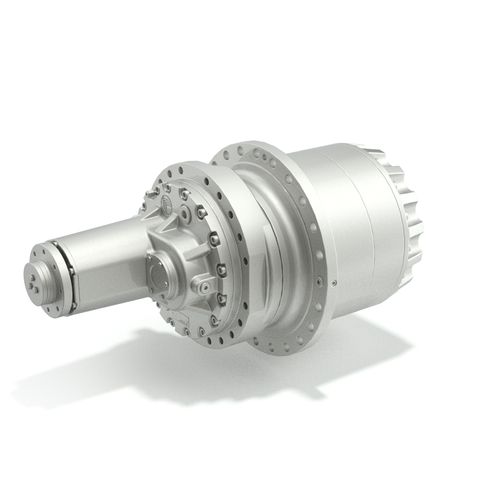

Planetary gear reducer 700C Seriescoaxialhollow-shaft> 10 kNm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- > 10 kNm
- Number of stages
- dual-stage
- Applications
- for cutting machines
- Gear ratio
Max.: 22.9 unit
Min.: 16 unit
Description
Dual-stage planetary drive units with integrated pulley support designed for cold planers and milling machines with engine power from 200 to 550 kW and rotor width from 1.0 to 2.5 m. The offset input option ensures higher machine productivity due to increased cutting depth. The unique integrated cooling system allows greater performance, easier system maintenance and optimal level of reliability.
Key features
Dual stage planetary reduction
Integrated pulley support shaft with reinforced bearings
Optimized housing design for improved lubrication performance
Offset input available for increased cutting depth
Integrated cooling system (optional)
