Impact crushing and screening plant BLK02-E

mobilehorizontal-shaftcompact

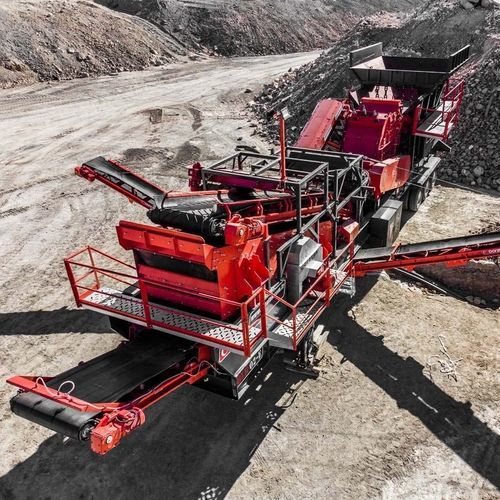

Boratas BLK02-E is a wheeled mobile impact crusher and screening plant developed for high capacity crushing and sizing in aggregate production, mining, and construction recycling applications. The machine is designed for operations that require integrated crushing and screening, stable throughput, and consistent product grading with fast relocation between job sites.

The semi mobile plant is equipped with a Boratas PDK series impact crusher and a triple deck vibrating screen on a single wheel mounted chassis. It is suitable for processing natural stone materials as well as recycled asphalt and construction waste. Its compact layout supports efficient plant setup for multi stage configurations where space, mobility, and controlled screening are required.

The unit operates primarily with electric drive and is intended to be connected to an external power source. Upon request, an optional diesel generator can be supplied to support projects that require independent power or temporary off grid operation.

Routine maintenance and operator safety are supported through accessible service zones, centralized lubrication points, and clearly arranged inspection areas. Controlled access platforms and integrated safety systems help reduce risks during inspection, adjustment, and wear part replacement.

Manufactured in compliance with international quality standards and supported by Boratas warranty and after sales service.

For further technical details and project specific solutions, kindly visit our website.


Standard Components

• Impact crusher unit (PDK Series)
• Triple deck vibrating screen
• Wheeled mobile chassis
• Electric drive system
• Optional diesel generator connection provision
• Feed hopper with grizzly vibrating feeder
• Hydraulic folding conveyors
• PLC based control system
• Dust suppression system
• Integrated lighting arm

Key Operational Features
• Integrated Crushing and Screening Performance
Designed to combine impact crushing and multi size screening in one unit for controlled output grading.
• Wheeled Mobility System
Wheel mounted chassis supports simplified transport and fast relocation between project sites.
• Multi Deck Screening Capability
Triple deck screen supports accurate separation into multiple product fractions.
• Electric Drive Operation
Electric configuration supports efficient operation and lower running costs on grid powered sites.
• Maintenance and Safety Oriented Design
Accessible service points and safety systems support secure operation and reduced downtime.
• Plant Integration Capability
Suitable for use in multi stage crushing and screening plant layouts.
