Hydraulic cone crusher BLC300

semi-mobilehigh-capacitysecondary

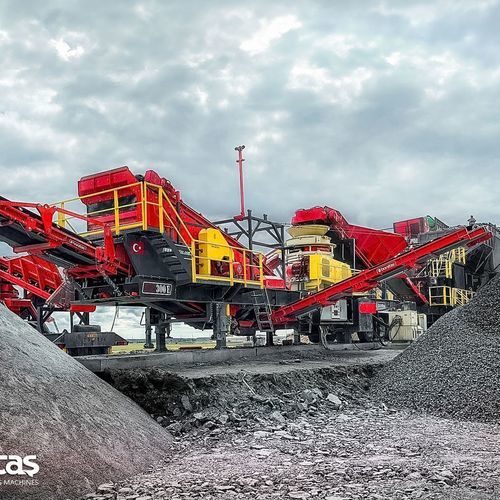

Borataş® BLC300 is a wheel-mounted mobile cone crushing and screening unit that combines a high-efficiency cone crusher with an integrated screening system on a single chassis, engineered for efficient secondary crushing of very hard and abrasive rocks. It is designed for quick on-site deployment, simplified operation and maintenance, and modular integration with primary or tertiary units to tailor aggregate production.

Key features and differentiators

• High-efficiency cone crusher integrated with a precision screening unit for optimal material classification
• Operator-focused design with an intuitive control panel and easily accessible maintenance points
• Wheel-mounted chassis for fast transport and rapid setup between job sites
• Hydraulic folding rear and side covers to minimize setup time and facilitate safe operation
• Designed for low operating costs through durable construction and energy-efficient operation
• Advanced cone crusher unit with hydraulic adjustment and overload protection for precise control and enhanced safety

Optional features

• Metal separator magnet
• Hardox linear bunker
• Automatic lubrication system

Technical specifications

• Model: BLC300
• Capacity (t/h): 150 - 250
• Max feed size (mm): 241
• Motor power (kW): 275
• Operating dimensions (mm): 22700 x 14500 x 6030
• Transport dimensions (mm): 20150 x 4000 x 4650
• Weight (kg): 68000
