Jaw crusher BLJ series

semi-mobilecompactprimary

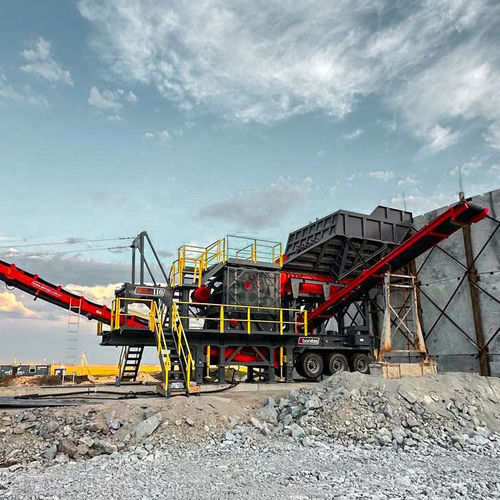

Boratas Portable Jaw Crusher BLJ Series is a wheel-mounted mobile jaw crushing solution engineered for high-capacity primary crushing of highly abrasive and hard rocks, such as basalt and granite.

Overview
The BLJ Series delivers a wheel-mounted jaw crusher system for rapid deployment and easy transport between sites. Designed for primary crushing of granite, basalt, gabbro and similar hard materials, the BLJ can be configured as a single chassis or extended into multi-chassis mobile plants for additional crushing stages.

Key Features and Differentiators

• Jaw crusher technology — Robust fixed and movable jaw plates for efficient reduction of very hard, abrasive feed.
• High-capacity performance — Models cover broad capacity ranges to suit different project scales and feed sizes.
• Wheel-mounted mobility — Quick relocation on site and reduced downtime; compact layout enables fast setup by a single operator.
• Operator-friendly controls — PLC control system, wireless remote control and straightforward adjustment features for simplified operation and monitoring.
• Safety and serviceability — Emergency stop, protective guards, hydraulically adjustable jaw opening and easy access for maintenance.
• Wear management — Wear-resistant, replaceable crusher plates and heavy-duty steel construction to minimise maintenance intervals.

Standard Technical Items

• High-capacity BLJ jaw crusher unit
• Main folding belt conveyor
• Wireless remote control
• PLC control system
• Electric drive (motorized)
• Grizzly vibrating feeder
• Dust suppression system

Optional Features

• Metal separator magnet
• Hardox-lined hopper
• Automatic lubrication system

Models / Performance (excerpt)

• BLJ106 — Capacity: 70–250 t/h; Hopper volume: 15 m3; Max feed size: 600 mm; Jaw opening: 1000 x 600 mm; Motor power: 114 kW; Operating dims: 15,800 x 7,300 x 5,700 mm; Transport dims: 12,900 x 3,300 x 4,300 mm; Weight: 43,000 kg.
• BLJ110 — Capacity: 100–300 t/h; Hopper volume: 35 m3; Max feed size: 850 mm; Jaw opening: 1100 x 850 mm; Motor power: 166 kW; Operating dims: 19575 x 13500 x 8000 mm; Transport dims: 12300 x 3700 x 4600 mm; Weight: 52,000 kg.
• BLJ120 — Capacity: 150–350 t/h; Hopper volume: 25 m3; Max feed size: 750 mm; Jaw opening: 1200 x 750 mm; Motor power: 166 kW; Operating dims: 17,900 x 7,900 x 5,750 mm; Transport dims: 14,300 x 3,800 x 4,500 mm; Weight: 60,000 kg.

Technical specifications

• Series name: BLJ series (wheel-mounted portable jaw crushers)
• Primary applications: primary crushing of hard, abrasive rocks in quarries and mobile site operations
• Drive & control: electric-powered operation with PLC control
• Feed & handling: grizzly vibrating feeder; main folding belt conveyor; model-specific bunker volumes
• Operator features: wireless remote control, quick-adjust systems, designed for single-operator rapid setup
• Safety & maintenance: emergency stop, protective guards, hydraulic jaw adjustment, replaceable wear parts
• Optional equipment: metal separator magnet, Hardox-lined hopper, automatic lubrication system
