Impact crushing and screening plant BLT series

mobilesand productionhorizontal-shaft

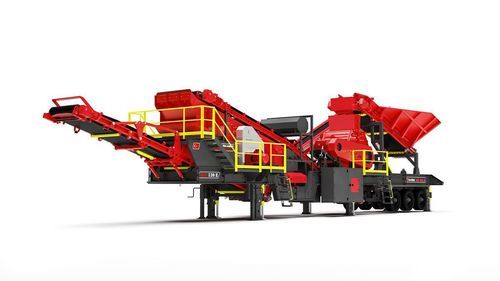

The Boratas Wheel-mounted tertiary crusher BLT130E series is a mobile tertiary crushing and integrated screening unit engineered for sites and long-term projects that require consistent production of fine-grained materials (e.g. 0-4 mm, 0-5 mm). It accepts feed from a mobile primary crusher or external feed (≤150 mm) and is designed for rapid deployment and relocation.

Key features and differentiators

• Advanced tertiary crushing optimized for high-quality fine material and uniform particle size distribution.
• Wheel-mounted chassis for site mobility and fast transport between locations.
• Integrated multi-deck vibrating screening unit (2, 3 or 4 decks) for precise classification.
• PLC control system for straightforward operation and process adjustment.
• Electric drive to reduce operating and fuel-related costs.
• Hydraulically foldable conveyors and gear-driven conveyors for efficient material handling.
• Wireless remote control and optional automation features for extended on-site control.

Technical specifications (table converted to list)

• MODEL: BLT130E2 — Capacity (t/h): 150 - 250 — Screen Deck: 2 — Motor Power (kW): 320 — Operating Dimensions (mm): 22670 x 10300 x 6125 — Transportation Dimensions (mm): 20350 x 4400 x 4700 — Weight (kg): 48000
• MODEL: BLT130E3 — Capacity (t/h): 150 - 250 — Screen Deck: 3 — Motor Power (kW): 324 — Operating Dimensions (mm): 22670 x 15000 x 6125 — Transportation Dimensions (mm): 20350 x 4400 x 4700 — Weight (kg): 51000
• MODEL: BLT130E4 — Capacity (t/h): 150 - 250 — Screen Deck: 4 — Motor Power (kW): 328 — Operating Dimensions (mm): 22670 x 15000 x 6125 — Transportation Dimensions (mm): 20350 x 4400 x 4700 — Weight (kg): 54000

Optional features

• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust reduction system

Applications

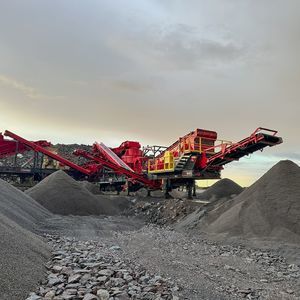

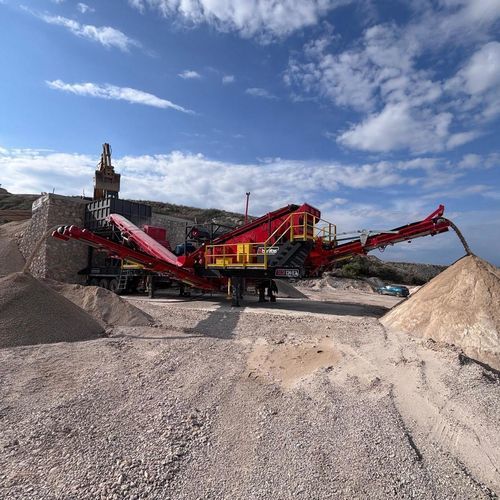

The BLT130E series is suited for mobile tertiary crushing and screening operations producing fine aggregates for concrete and asphalt. Typical combined mobile systems can deliver 200–300 t/h when integrated; the series is ideal for temporary or relocatable quarry sites where transport and deployment economy are critical.

Technical data

• Brand: Borataş
• Commercial denomination: BLT130E Series
• Machine code: BLT
• Type: Wheel-mounted tertiary crusher with integrated vibrating screening unit (mobile)
• Drive & Control: Electric-powered operation with PLC control and wireless remote capability
• Screening options: 2, 3 or 4 decks (configurable)
• Designed for: Fine material production (e.g. 0-4 mm / 0-5 mm) for construction aggregates and quarry applications
