Hammer crusher BLH14

mobilesand productionhorizontal-shaft

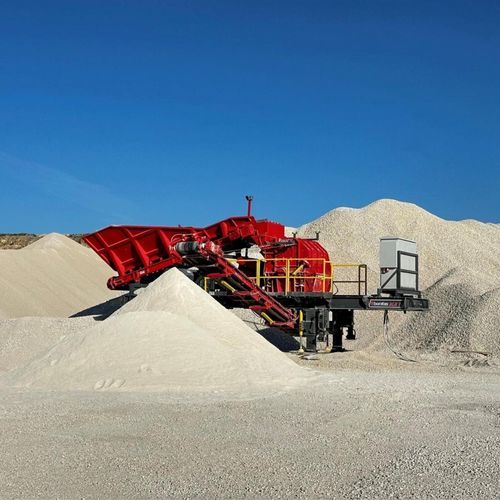

Boratas BLH14 is a wheeled mobile hammer crusher unit designed for high reduction of soft to medium hardness materials in aggregate production and recycling applications. The crusher is considered a variation type of impact crushers and it is commonly used to produce m-sand and fines. It is capable of processing limestone and similar rock types. Designed for rapid relocation between job sites, it is particularly suited to temporary quarrying, demolition, and construction waste recycling operations.

The unit is equipped with a hammer crushing system and a belt feeder, allowing continuous material feeding and efficient size reduction. Thanks to its integrated grizzly screen located beneath the crushing chamber, it produces sand and the finest material without requiring an additional screening step. The integrated conveyor system ensures smooth material discharge, while the compact design allows flexible use across different job sites.

Key features and differentiators

• High-impact hammer crushing mechanism providing uniform particle sizing and a high reduction ratio.
• Mobile wheeled chassis for easy transport between sites, reduced logistics time and fast deployment.
• Adjustable crushing chamber and optimized rotor geometry for consistent output and high reduction performance.
• PLC-based automation for monitoring, precision adjustment and simplified control of crusher parameters.
• Energy-efficient layout and durable wear components to limit downtime and operating costs.

Hammer crusher component

• Heavy-duty rotor fitted with impact-resistant, easily replaceable hammers operating at high speed to deliver strong impact forces inside the crushing chamber; wear-resistant hammer design for reduced maintenance time.

Optional features

• Hardox-lined feed hopper
• Automatic lubrication system
• Magnetic metal separator
• Dust suppression system

Technical specifications (example model)

• Series: BLH Series
• Model (example): BLH14
• Capacity (t/h): 30 - 80
• Max feed size (mm): 50
• Rotor diameter (Ø): 1000 mm
• Working dimensions (mm): 11550 x 8700 x 5200
• Transport dimensions (mm): 11550 x 3600 x 4300
• Weight (kg): 20000

Standard equipment

• Hydraulic foldable stockpile conveyor
• Hydraulically adjustable mobile chassis
• PLC control system
• Electric-powered operation
