Cone crusher BPC100

mobilediesel enginecompact

Product overview

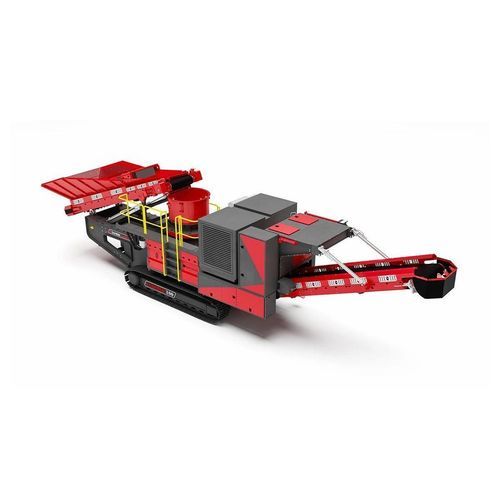

Borataş® Cotrack series mobile cone crusher BPC100 is a track-mounted secondary/tertiary cone crusher engineered for high reduction ratios, strong output capacity and excellent product cubicality. It is intended for aggregate production, mining and recycling projects where compact footprint, site mobility and dust control are required.

Key benefits

• High-efficiency cone crusher suitable for medium to high hardness and abrasive materials.
• Hybrid (diesel-electric) power option for fuel optimization and lower emissions.
• Operator-focused design with easy-access maintenance points, simplified cleaning and an intuitive control interface.
• Compact, track-mounted mobile structure for quick deployment and on-site processing.
• Flexible crushing configurations with adjustable feed and crusher settings for precise product size control.

Highlights / Characteristics

• Dynamic Cone Crushing Technology: engineered cone profile for efficient compressive crushing and consistent particle shape.
• Flexible Crushing Configurations: adjustable setups and customizable parameters (feed size, crusher settings) for application-specific outputs.
• Operator-Centric Design: easy maintenance access, simplified cleaning, wireless remote control and PLC control system.
• Mobility and Flexibility: track-mounted unit with foldable components for rapid relocation across job sites.
• Hybrid Drive Option: combined diesel and electric drive for optimized fuel use and improved environmental performance.
• Cone Crusher Unit: configured for secondary/tertiary crushing of granite, dolomite and basalt; optional concave profiles (Extra Coarse, Medium-Fine).

Specifications

• Maximum feed size: 42 - 214 mm
• Installed power: 360 kVA
• Machine weight: 35,000 kg
• Transport dimensions (L x W x H): 16,200 mm x 3,200 mm x 3,600 mm
• Drive options: Diesel, Electric, Hybrid (diesel-electric)
• Mounting: Track-mounted mobile unit
• Control: PLC control system and wireless remote control
• Feeder: Hydraulically adjustable hopper feeder; belt feeder with rubber lining
• Conveyors: Drum-type conveyor motors; optional conveyor lubrication and covers
• Crushing stages: Secondary / Tertiary cone crushing with optional concave profiles (Extra Coarse, Medium-Fine)

Standard features

• High-efficiency cone crusher
• Diesel or electric drive system
• Hydraulically adjustable hopper feeder
• Wireless remote control
• PLC control system
• Drum-type conveyor motors
• Belt feeder with rubber lining
• Lighting arm for site operations

Optional features

• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover
• Optional concave profiles for varied crushing applications

Uses & Applications

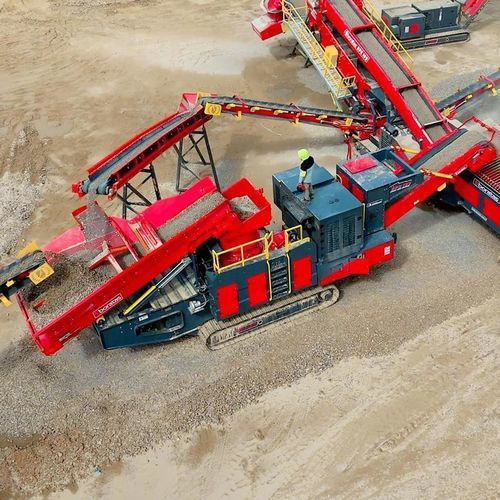

The BPC100 is suitable for aggregate production, mining and recycling where a compact, mobile unit is required. Dust suppression and hybrid power options enable operation in environmentally sensitive or near-residential areas.

Technical specifications

• Model: BPC100
• Maximum feed size: 42 - 214 mm
• Installed power: 360 kVA
• Machine weight: 35,000 kg
• Transport dimensions (L x W x H): 16,200 mm x 3,200 mm x 3,600 mm
• Drive options: Diesel, Electric (Hybrid diesel-electric available)
• Mounting: Track-mounted mobile unit
• Control: PLC control system and wireless remote control
• Feeder: Hydraulically adjustable hopper feeder; belt feeder with rubber lining
• Conveyors: Drum-type conveyor motors; optional conveyor lubrication and covers
• Crushing stages: Secondary / Tertiary cone crushing with optional concave profiles (Extra Coarse, Medium-Fine)
• Main applications: Aggregate, mining, recycling; suited to hard and abrasive materials (granite, dolomite, basalt)
