Cone crusher BPC200-S

mobilediesel enginecompact

Product Overview

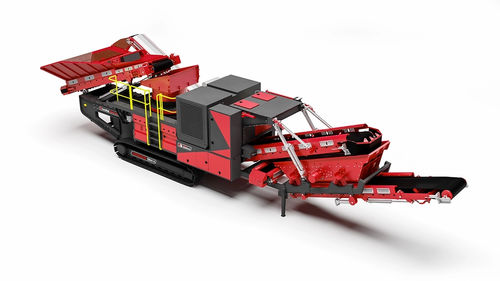

The Borataş® Cotrack series mobile cone crusher BPC200-S is designed for high-capacity aggregate production, mining and recycling applications where mobility and on-site processing are required. The compact tracked chassis, integrated dust suppression and closed-circuit screening make it suitable for operations in confined or urban job sites while delivering consistent cubical product shapes.

BPC200-S Characteristics

• Advanced Cone Crushing Technology - Efficient compressive crushing for consistent particle shape and size, suitable for medium-to-high hardness materials including granite, dolomite and basalt.
• Closed-Circuit Final Screening System - Integrated recirculating screen ensures final product meets target sizes and reduces the need for external screening equipment.
• Operator-Centric Design - Accessible maintenance points, simplified cleaning procedures and an intuitive PLC interface reduce downtime and simplify operation.
• Mobility and Flexibility - Tracked undercarriage and compact transport dimensions allow fast relocation and on-site setup to process material at the source.
• Hybrid (Diesel-Electric) Power System - Combines diesel and electric power to improve fuel efficiency and lower the machine’s environmental footprint during operation.
• Cone Crusher - Engineered for secondary and tertiary crushing with configurable profiles (Extra Coarse, Medium Fine) to tailor output gradation.

Standard Features

• Single-deck vibrating screen
• High-capacity cone crusher
• Diesel-electric drive
• Hydraulically adjustable hopper feeder
• Wireless remote control
• PLC control system
• Drum motor-driven conveyor belts
• Rubber belt feeder

Optional Features

• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover
• Variable concave options
• Double-deck vibrating screen

Technical specifications

• Maximum Feed Size: 47 - 250 mm
• Power: 500 kVA
• Screen: Single-deck, 1,500 x 3,300 mm
• Weight: 58,000 kg
• Transport Length: 19,000 mm
• Transport Width: 3,650 mm
• Transport Height: 3,600 mm
