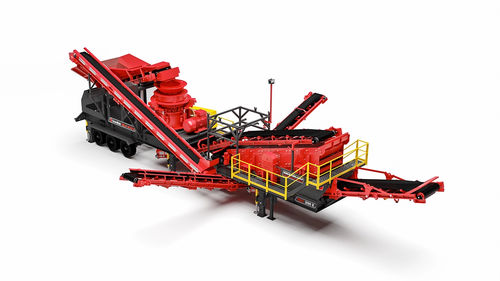

Cone crusher BLC300

mobilehigh-capacitysecondary

Product Overview
Borataş® BLC300 mobile cone crushing and screening unit is a wheel-mounted plant designed for secondary crushing of very hard and abrasive materials such as granite and basalt. The unit is modular and can be combined with a primary mobile jaw crusher or tertiary VSI units to match project needs. Mobile deployment reduces transport and setup time compared with stationary plants and is suited to projects requiring relocation.

Specifications

• Capacity: 150 – 250 t/h
• Max. Feed Size: 241 mm
• Screen Decks: 3
• Screen Size: 1800 x 5200 mm
• Weight: 68,000 kg
• Transport Dimensions (L x W x H): 20,150 x 4,000 x 4,650 mm
• Operating Dimensions (L x W x H): 22,700 x 14,500 x 6,030 mm

Characteristics

• High production capacity up to 250 t/h with a cone crusher optimized for secondary/tertiary reduction of medium-to-high hardness materials.
• Integrated three-deck screening unit for accurate product classification and adjustable deck settings to meet production targets.
• Operator-focused design with intuitive controls, accessible maintenance points and hydraulic assist for rapid setup.
• Wheel-mounted chassis for easy transport between sites and fast on-site commissioning.
• Hydraulic adjustment and overload protection on the cone crusher for precise setting and enhanced safety.

Standard Features

• High-capacity cone crusher
• Hydraulic folding rear and side covers
• Wireless remote control
• PLC control system
• Electric drive

Optional Features

• Metal separator magnet
• Hardox lined hopper
• Automatic lubrication system

Technical Specifications

• Model: BLC300
• Capacity: 150 – 250 t/h
• Maximum Feed Size: 241 mm
• Screen Decks: 3
• Screen Size: 1800 x 5200 mm
• Weight (approx.): 68,000 kg
• Transport Dimensions (L x W x H): 20,150 x 4,000 x 4,650 mm
• Operating Dimensions (L x W x H): 22,700 x 14,500 x 6,030 mm
• Applications: Secondary crushing of granite, basalt and other abrasive hard stones; modular integration with primary and tertiary units
• Key Technologies: Hydraulic adjustment, overload protection, integrated screening, PLC control, wireless remote operation
