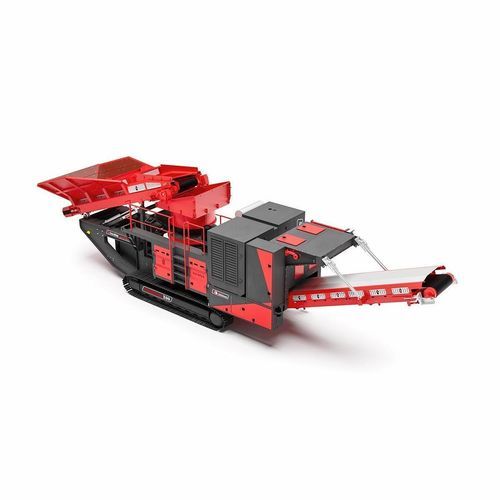

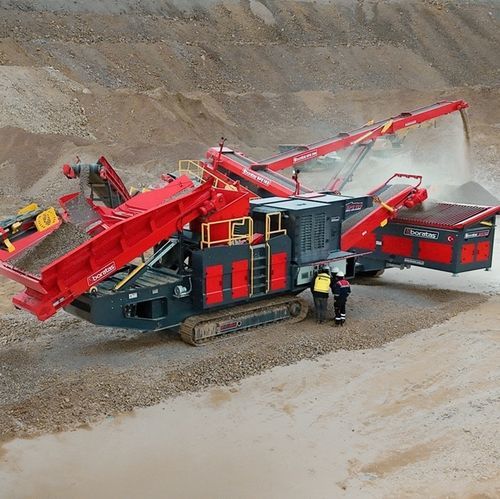

Cone crusher BPC200

mobilediesel enginecompact

Overview
The Borataş® Cotrack Series mobile cone crusher BPC200 provides high output capacity, a high reduction ratio and consistent cubic product shape. Designed for aggregate production, mining and recycling, it is suitable for sites requiring compact, track-mounted mobility and integrated dust suppression.

BPC200 Characteristics

• Advanced cone crushing technology: Unique cone geometry delivers compression crushing for uniform particle shape and improved aggregate quality.
• Multiple crushing configurations: Configurable settings for feed size and crusher parameters to adapt to secondary and tertiary applications.
• Operator-centric design: Easy-access maintenance points, simplified cleaning and an intuitive control interface to reduce downtime.
• Mobility and flexibility: Track-mounted, compact footprint with foldable components for on-site relocation and road transport compatibility.
• Hybrid (diesel-electric) power system: Integrated diesel-electric architecture for optimized fuel use and reduced emissions where electric supply is available.
• Cone crusher component: Engineered for secondary/tertiary crushing of hard, abrasive rocks (granite, dolomite, basalt); available concave options: extra-coarse (EC) and medium-fine.

Standard Features

• High-efficiency cone crusher
• Diesel or electric drive system
• Hydraulically adjustable hopper feeder
• Wireless remote control
• PLC control system
• Drum-type conveyor motors
• Belt feeder with rubber lining
• Lighting arm

Optional Features

• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover
• Optional concave profiles for different crushing applications

Additional Product Description
The BPC200’s cone geometry ensures effective compression crushing and consistent particle sizing for demanding aggregate applications. Robust construction and durable wear parts provide reliable performance in medium- to large-scale operations. The hybrid power package supports lower-emission workflows and operation on sites with available electric power.

Characteristics / Technical specifications

• Maximum Feed Size: 47 - 250 mm
• Power: 500 kVA
• Weight: 52,000 kg
• Transport Length: 17,100 mm
• Transport Width: 3,350 mm
• Transport Height: 3,650 mm
