Cone crusher BPC100-S

mobilediesel enginecompact

Product Overview

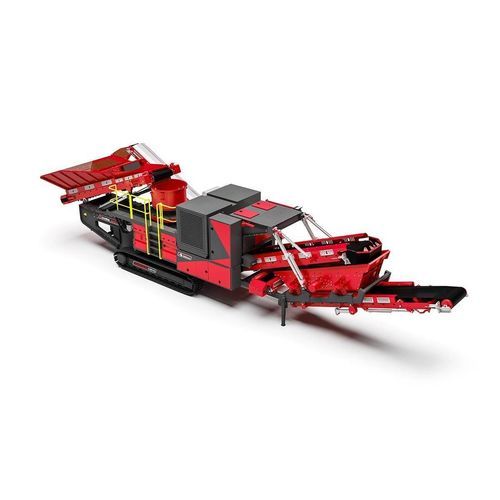

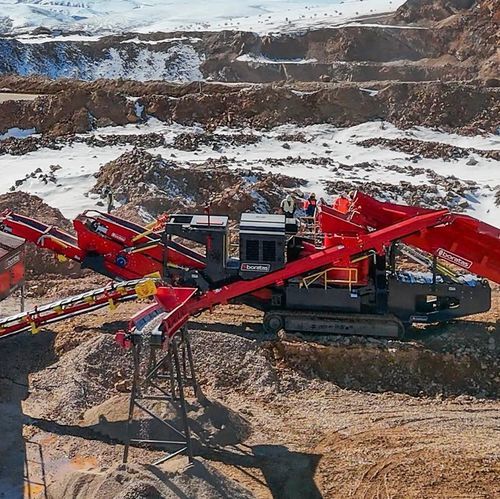

The Boratas® Cotrack Series mobile cone crusher BPC100-S is a track-mounted secondary/tertiary crusher designed for high-capacity aggregate, mining and recycling applications. Compact and highly mobile, with an integrated dust suppression system, it is suitable for operations on constrained or residential sites. The unit processes medium to high-hardness and abrasive natural stones (granite, basalt, dolomite) producing cubical products and high reduction ratios.

Specifications (summary)

• Maximum feed size: 42–214 mm
• Power: 360 kVA
• Screen: Single-deck, 1,300 x 3,300 mm (suspended single-layer screen)
• Weight: 44,000 kg
• Transport dimensions: Length 18,250 mm × Width 3,400 mm × Height 3,650 mm
• Drive: Hybrid (diesel-electric)
• Mounting: Track-mounted (mobile)
• Controls: PLC control system, wireless remote control
• Applications: Aggregate crushing, mining, recycling; suitable for medium to high-hardness and abrasive materials

Key Features

• Dynamic cone crushing technology — Efficient compressive crushing for uniform particle shape and enhanced processing efficiency.
• Closed-circuit final screening system — Integrated closed-circuit ensures product meets precise size specifications and optimizes throughput.
• Operator-centric design — Accessible maintenance points, simplified cleaning and an intuitive control interface to reduce downtime.
• Mobility and flexibility — Track-mounted configuration enables on-site processing, easy transport and fast setup.
• Hybrid (diesel-electric) power — Optimizes diesel and electrical sources to improve fuel efficiency and reduce emissions.
• Cone crusher unit — Suited for secondary or tertiary crushing of hard, abrasive stones with configurable concaves for extra-coarse to medium-fine products.

Standard Features

• Single-deck vibrating screen
• High-efficiency cone crusher
• Diesel-electric drive
• Hydraulically adjustable hopper feeder
• Wireless remote control
• PLC control system
• Drum motor-driven conveyor belts
• Rubber belt feeder

Optional Features

• Hardox-lined hopper
• Automatic conveyor lubrication system
• Dust suppression system
• Main conveyor cover
• Variable concave options
• Double-deck vibrating screen

Additional Information
Designed for high throughput and excellent product shape, the BPC100-S includes a suspended single-layer screen for precision sizing and an operator-friendly layout for simplified maintenance and control.

Technical specifications

• Model: BPC100-S
• Maximum feed size: 42–214 mm
• Power: 360 kVA
• Screen: Single-deck, 1,300 x 3,300 mm (suspended single-layer screen)
• Weight: 44,000 kg
• Transport length: 18,250 mm
• Transport width: 3,400 mm
• Transport height: 3,650 mm
• Drive: Hybrid (diesel-electric)
• Mounting: Track-mounted (mobile)
• Controls: PLC control, wireless remote control
• Conveyors: Drum motor-driven belts; rubber belt feeder
• Applications: Aggregate crushing, mining, recycling; suitable for medium to high-hardness, abrasive materials
