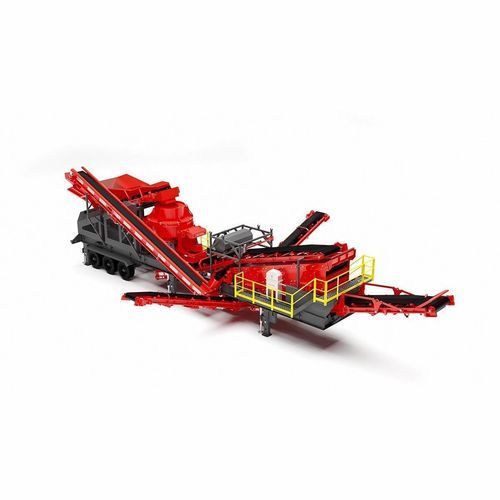

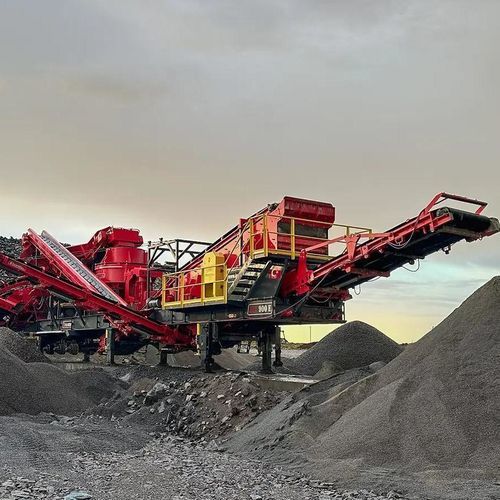

VSI crusher BLV900-E

mobilesand productionvertical-axis

Overview
Borataş® BLV900-E series closed-rotor VSI crusher is a wheeled mobile crushing and screening unit designed for production of fine, cubical sand and aggregates in the 0-5 mm range. It accepts feed up to 38 mm after primary and secondary crushing and integrates screening and classification for consistent product sizing.

Key Benefits & Design
Wheel-mounted chassis for rapid mobility and on-site setup. Closed rotor design reduces material loss and improves energy efficiency. Integrated screening ensures precise material classification. Electric drive with PLC control, wireless remote control and hydraulic foldable conveyors enable simplified operation and commissioning by a single operator. Adaptable for short-term quarries and for transport after project completion.

Specifications
Capacity: 200 – 300 t/h
Screen Deck: 3 (standard) (3- or 4-deck options available)
Max. Feed Size: 38 mm
Rotor Diameter: Ø900
Weight: 54,000 kg
Transport Dimensions: 21,200 x 4,650 x 4,600 mm
Operating Dimensions: 22,670 x 15,000 x 6,100 mm

BLV900-E Characteristics

• Production capacity up to 300 t/h using a closed-rotor vertical shaft impact crusher with high-speed crushing action.
• Closed rotor design minimizes material loss and handles abrasive materials with durable components.
• Integrated screening system with adjustable mechanism for precise product sizing and classification.
• Wheel-mounted chassis for easy transport, rapid setup and suitability for short-term projects.
• Reduced operating costs due to energy-efficient closed-rotor design and long-life wear parts.
• Adjustable VSI crusher settings to produce fine, cubical-shaped particles suitable for sand (0-5 mm).

Standard Features

• VSI closed-rotor vertical shaft crusher
• 3- or 4-deck vibrating screen
• Hydraulic foldable conveyor belts
• Wireless remote control
• PLC control system
• Electric-powered operation
• Gear-driven conveyor belts

Optional Features

• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust reduction system

Technical Specifications

• Model: BLV900-E
• Capacity: 200 – 300 t/h
• Screen Deck: 3 (option for 4)
• Maximum Feed Size: 38 mm
• Rotor Diameter: Ø900
• Weight: 54,000 kg
• Transport Dimensions (L x W x H): 21,200 x 4,650 x 4,600 mm
• Operating Dimensions (L x W x H): 22,670 x 15,000 x 6,100 mm
• Drive: Electric-powered operation (PLC control, wireless remote available)
• Design: Closed-rotor VSI for fine, cubical-shaped sand (0-5 mm)
