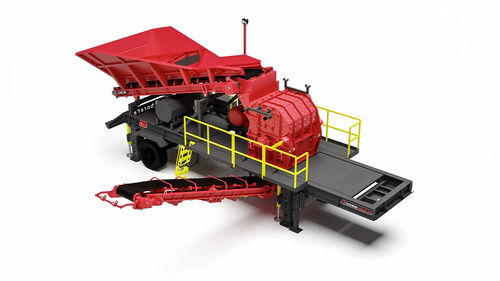

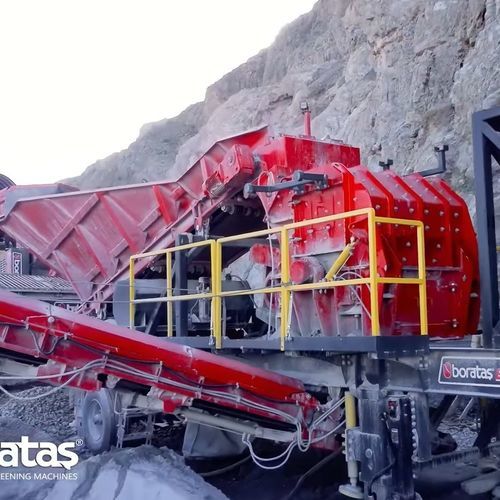

Hammer crusher BLH14

mobilefor mineral materialrubber-tired

Product Overview
The Boratas® BLH14 mobile hammer crusher is designed for high reduction of soft to medium-hard, non-abrasive materials. Its integrated grizzly screen below the crushing chamber often allows production of final material without an additional screening stage. Product gradation is adjusted by rotor speed and the gap between rotor and lower grate.

Mobility and Site Efficiency
Mounted on a wheeled chassis, the BLH14 features hydraulically adjustable chassis, feed hopper and conveyors for rapid positioning and minimal site setup time. Mobile deployment reduces transport and logistics costs for temporary quarrying, demolition or recycling operations compared with relocating stationary plants.

Specifications

• Capacity: 30 – 80 t/h
• Max. feed size: 50 mm
• Rotor diameter: Ø1000 mm
• Rotor width: 1400 mm
• Weight: 20,000 kg
• Transport dimensions (L × W × H): 11,550 × 3,600 × 4,300 mm
• Operating dimensions (L × W × H): 11,550 × 8,700 × 5,200 mm

BLH14 Characteristics

• Hammer crushing mechanism with high-impact rotor for efficient reduction to uniform particle sizes; suitable for quarrying, demolition and recycling.
• Wheeled mobile design with hydraulic positioning for fast relocation and single-operator setup.
• High reduction ratio and consistent output from rotor geometry and adjustable crushing chamber.
• PLC-based control and monitoring for precise adjustment, improved safety and optimized material flow.
• Engineered for energy-efficient operation to lower fuel/electricity consumption over long projects.
• Heavy-duty, high-speed rotor with impact-resistant, replaceable hammers and wear-resistant components to minimize downtime.

Standard Features

• BLH Series hammer crusher
• Hydraulically foldable discharge conveyor
• Hydraulically adjustable mobile chassis
• PLC control system
• Electric operation

Optional Features

• Hardox-lined feed hopper
• Automatic lubrication system
• Metal separator magnet
• Dust suppression system
