Impact crusher BLT130-E4

mobilefinehigh-capacity

Overview

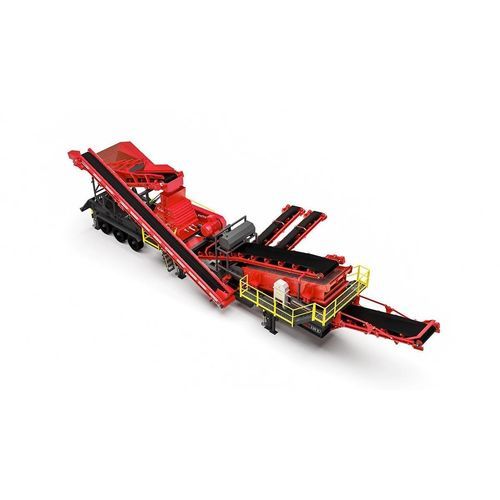

Borataş wheel-mounted tertiary impact crusher BLT130-E4 is designed for precise tertiary size reduction with on-site mobility for construction, aggregate and recycling applications.

Product summary

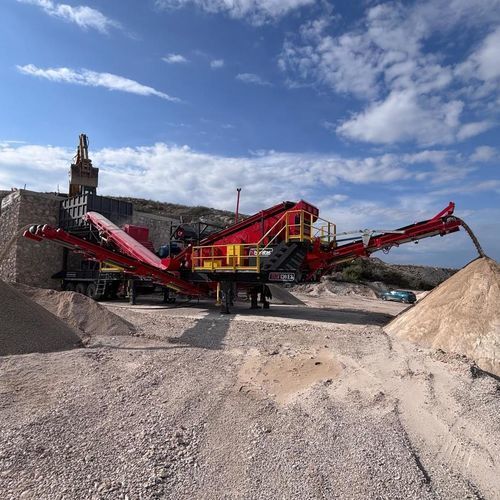

The BLT130-E4 accepts feed up to 150 mm and is intended to produce fine fractions such as 0–4 mm or 0–5 mm. It can be fed directly by a mobile primary impact crusher or by an external feeder. The mobile chassis supports 2-, 3- or 4-deck vibrating screens to meet different product specifications. In a combined mobile crushing and screening train the system commonly achieves 200–300 t/h of concrete or asphalt aggregate. Mobile configuration reduces transport and setup time and enables single-operator deployment.

Specifications

• Model: BLT130-E4
• Capacity: 150–250 t/h
• Screen decks: 2 / 3 / 4 available (unit shown with 4 decks)
• Max feed size: 150 mm
• Rotor diameter: Ø1150 mm
• Crusher rotor (L×W): 1300 × 1250 mm
• Target product sizes: 0–4 mm or 0–5 mm
• Typical integrated production: 200–300 t/h (concrete/asphalt aggregate)
• Weight: 54,000 kg
• Transport dimensions (L×W×H): 20,350 × 4,400 × 4,700 mm
• Operating dimensions (L×W×H): 22,670 × 10,300 × 6,125 mm
• Control: PLC
• Drive: Electric

Key characteristics

• Tertiary crushing capability: Configured to produce fine, uniform particles with throughput up to 250 t/h.
• Mobile wheel-mounted chassis: Enables movement within sites and efficient transport between locations.
• Integrated screening unit: Onboard vibrating screen with configurable decks for accurate size classification.
• Operator control and adjustment: PLC system and wireless remote provide quick parameter changes and monitoring.
• Energy-efficient electric drive: Electric operation reduces fuel reliance for long-term projects.
• Serviceable rotor design: Exchangeable components and adjustable settings extend component service life.

Standard features

• TDK series impact crusher
• 2 / 3 / 4-deck vibrating screen options
• Hydraulic folding conveyors
• Hopper with hydraulically folding rear and side covers
• Wireless remote control
• PLC control system
• Electric drive
• Belt conveyors with geared motors

Optional features

• Metal separator magnet
• Hardox-lined hopper
• Automatic lubrication system
• Alternative rotor types
• Dust suppression system

Technical specifications

• Model: BLT130-E4
• Capacity: 150–250 t/h
• Screen decks: 2 / 3 / 4
• Max feed size: 150 mm
• Rotor diameter: Ø1150 mm
• Crusher rotor: 1300 × 1250 mm
• Target sizes: 0–4 mm / 0–5 mm
• Typical integrated output: 200–300 t/h
• Weight: 54,000 kg
• Transport dims (L×W×H): 20,350 × 4,400 × 4,700 mm
• Operating dims (L×W×H): 22,670 × 10,300 × 6,125 mm
• Control: PLC
• Drive: Electric
