Impact crusher BLT130-E2

mobilehigh-capacityrubber-tired

Overview

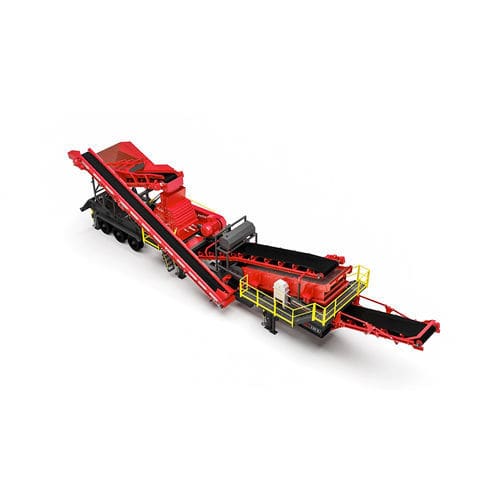

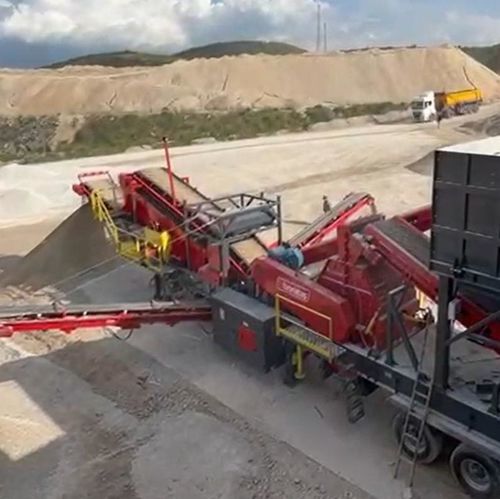

Borataş BLT130-E2 wheel-mounted tertiary impact crusher is a high-performance, mobile tertiary crusher optimized for efficient and precise tertiary crushing. The unit combines on-site mobility and operational flexibility, suitable for long-term projects. It can be fed directly by a mobile primary impact crusher with material reduced to 150 mm, or independently with external feed not exceeding 150 mm. The BLT130-E2 is configured to produce fine materials such as 0-4 mm or 0-5 mm. When integrated with a mobile crushing and screening train, the system can produce 200–300 t/h of concrete or asphalt aggregates.

Specifications (summary)
Capacity: 150 – 250 t/h
Screen deck: 2 (configurable to 3 or 4)
Max. feed size: 150 mm
Rotor diameter: Ø1150
Crusher rotor: 1300 x 1250 mm
Weight: 48,000 kg
Transport dimensions (L x W x H): 20,350 x 4,400 x 4,700 mm
Operating dimensions (L x W x H): 22,670 x 10,300 x 6,125 mm

Characteristics

• Optimized tertiary crushing performance: designed to produce consistent fine-grained material at rates up to 250 t/h.
• Mobile wheeled chassis: enables rapid relocation and efficient on-site deployment.
• Integrated screening: vibrating screen available in 2, 3 or 4 decks for precise size classification and adjustable product gradings.
• Control and adjustment: PLC control system with remote operation for easy setup, monitoring and reduced downtime.
• Energy-efficient electric drive: reduces fuel consumption and operating costs on electrified sites.
• Durable tertiary crushing components: engineered to handle hard and abrasive materials with adjustable settings to optimize wear life.

Standard Features

• High-capacity TDK series impact crusher
• 2, 3 or 4-deck vibrating screen
• Hydraulic folding conveyor
• Hopper with hydraulically folding rear and side covers
• Wireless remote control
• PLC control system
• Electric-powered operation
• Belt conveyors with geared motors

Optional Features

• Metal separator magnet
• Hardox-lined hopper
• Automatic lubrication system
• Alternative rotor types
• Dust suppression system

Technical specifications

• Capacity: 150 – 250 t/h
• Screen deck: 2 (also available as 3 or 4 decks)
• Maximum feed size: 150 mm
• Rotor diameter: Ø1150
• Crusher rotor dimensions: 1300 x 1250 mm
• Machine weight: 48,000 kg
• Transport dimensions (L x W x H): 20,350 x 4,400 x 4,700 mm
• Operating dimensions (L x W x H): 22,670 x 10,300 x 6,125 mm
• Designed output products: fine materials such as 0–4 mm or 0–5 mm
• Drive: electric-powered system with PLC control and remote operation capability
