Impact crusher BLT130-E3

mobiletertiaryelectric

Overview

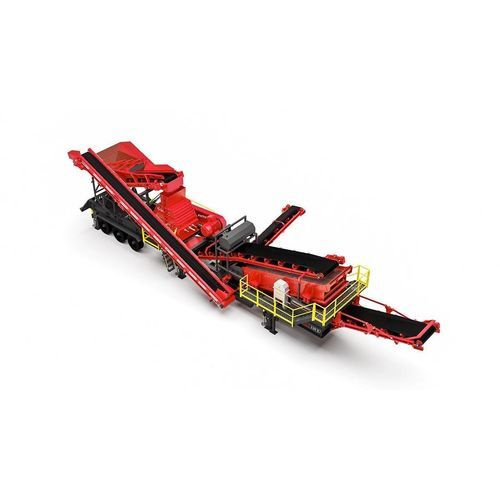

Borataş BLT130 Mobile Tertiary Crushing and Screening Unit. The BLT130E Series is a high-performance, wheel-mounted tertiary impact crusher designed for efficient and precise tertiary crushing. The unit combines flexibility and mobility for use across various job sites while delivering sustained efficiency for long-term projects.

Product Details
The BLT130 can be fed directly by a Mobile Primary Impact Crusher Unit with materials reduced to 150 mm or independently with external feed materials not exceeding 150 mm. It is designed to produce fine materials such as 0-4 mm or 0-5 mm. The vibrating screen mounted on the mobile chassis is available with 2, 3, or 4 decks, tailored to meet customer requirements.

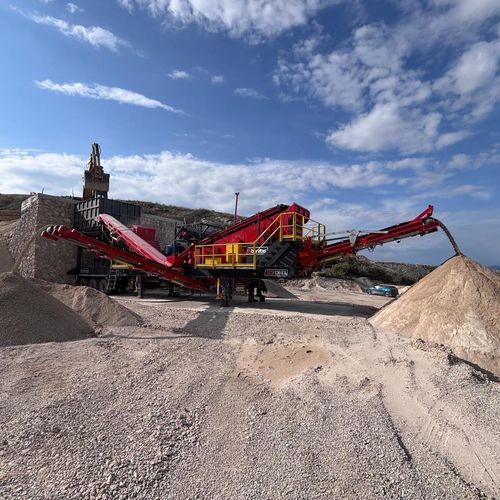

When integrated with a mobile crushing and screening unit, this system is suitable for producing 200-300 t/h of concrete or asphalt aggregate. Mobile systems provide advantages for temporary quarry sites including reduced transportation/logistics costs and rapid setup by a single operator.

Specifications

• Capacity: 150 – 250 t/h
• Screen Deck: 3 (available also in 2 or 4 decks as options)
• Max. Feed Size: 150 mm
• Rotor Diameter: Ø1150
• Crusher Rotor: 1300 x 1250 mm
• Weight: 51,000 kg
• Transport Dimensions: 20,350 x 4,400 x 4,700 mm
• Operating Dimensions: 22,670 x 10,300 x 6,125 mm

BLT130-E3 Key Characteristics

• Advanced Tertiary Crushing Capacity — Optimized for tertiary crushing to produce high-quality fine-grained materials; capacity up to 250 t/h.
• Flexible and Mobile Design — Mounted on a wheeled chassis for easy mobility within sites and transport between locations, lowering logistics costs and accelerating workflows.
• Integrated Screening System — Built-in screening unit with adjustable screening component enabling precise material classification and production of desired sizes.
• Precise Adjustment and Control Mechanisms — Equipped with a PLC control system for simple operator adjustments to enhance efficiency and material quality while reducing maintenance.
• Low Operating Costs — Energy-efficient electric-powered operation that can significantly reduce fuel-related costs for long-term projects.
• Robust Tertiary Crushing Component — Engineered to process hard and abrasive materials at high speeds, producing consistent fine-grain output with adjustable mechanisms to optimize performance and extend component life.

Standard Features

• High-capacity, efficient TDK series impact crusher
• 2, 3, or 4-deck vibrating screen
• Hydraulic folding conveyor
• Hopper with hydraulically folding rear and side covers
• Wireless remote control
• PLC control system
• Electric-powered operation
• Belt conveyors with geared motors

Optional Features

• Metal separator magnet
• Hardox-lined hopper
• Automatic lubrication system
• Various rotor types
• Dust suppression system

Technical specifications

• Model: BLT130-E3
• Capacity range: 150 – 250 t/h
• Typical production (when integrated): 200 – 300 t/h (concrete/asphalt aggregate)
• Screen decks available: 2 / 3 / 4
• Maximum feed size: 150 mm
• Rotor diameter: Ø1150
• Crusher rotor size: 1300 x 1250 mm
• Operating weight: 51,000 kg
• Transport dimensions (L x W x H): 20,350 x 4,400 x 4,700 mm
• Operating dimensions (L x W x H): 22,670 x 10,300 x 6,125 mm
