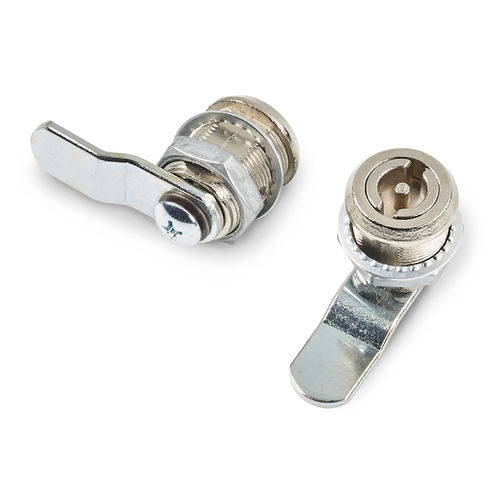

Cam lock J142
keysteel

cam lock
cam lock
cam lock
cam lock
Add to favorites
Compare this product


Characteristics

Type
cam, key
Material
steel

Description

Materials: (1) Die-cast zamak lock body M19 (stator) and rotor. 3 mm winged tubular key. (2) Elastic washer d. 24x1 with bore d. 19.4. (3) Steel hexagon lock nut M19x1. (4) Steel locking lever. (Qn design N flat - Qe design E bent outwards). (5) Conical steel elastic washer d. 12x1.5. (6) Steel Phillips dome head screw M5x8. Surface finish: (1) Nickel-plated. (2-5) Black oxide treated. (3-4-6) Standard blue galvanising. Key (optional): (7) Red plastic key, Art. J09050.TP0316 ATTENTION: The key is not supplied. To be ordered separately. Rotation: 90°. Special Requests: None.

Catalogs

No catalogs are available for this product.

See all of Boteco‘s catalogs
