Operating handwheel D207
spokedswing-handleplastic

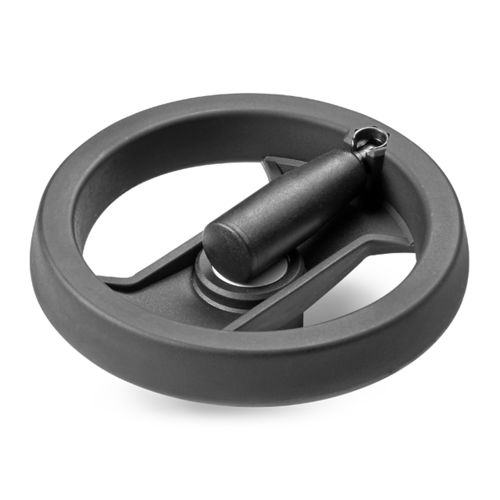

Operating handwheel - D207 - Boteco - spoked / swing-handle / plastic
Operating handwheel - D207 - Boteco - spoked / swing-handle / plastic
Operating handwheel - D207 - Boteco - spoked / swing-handle / plastic - image - 2
Operating handwheel - D207 - Boteco - spoked / swing-handle / plastic - image - 3
Add to favorites
Compare this product

Characteristics

Function
operating
Configuration
spoked, swing-handle
Material
plastic
Outside diameter

129 mm, 159 mm, 346 mm
(5.08 in, 6.26 in, 13.62 in)

Bore size

32 mm, 40 mm, 67.5 mm
(1.26 in, 1.57 in, 2.66 in)

Description

Materials: Reinforced and stabilised polyamide. Oils and greases resistant. Surface: Satin. Colour: Black (RAL 9011). Central cap: Grey polyamide cap (RAL 7035 cod. 13). Alternative cap colours: Orange (RAL 2004 cod. 02). Blue (RAL 5015 cod. 07). Yellow (RAL 1021 cod. 10). Red (RAL 3000 cod. 16). Green (RAL 6024 cod. 17). Black ( RAL 9011 cod. 01). Main insert: Zinc plated steel insert with right through smooth bore, (bore tolerance H10). Side handle: Flush, foldaway revolving handle, with hexagonal connection. Reinforced polyamide. Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838. Hub: Solid hub. Fixing: For fixing system, or execution of keyway or square holes, please refer to the technical notes attached to the catalogue.
