Internal diameter micrometer SXTHSY seriesboredigitalpistol grip
Add to favorites
Compare this product
Characteristics
- Measurement
- internal diameter, bore
- Display
- digital
- Other characterisitcs
- pistol grip
- Measuring range
Min.: 6 mm
(0.236 in)Max.: 100 mm
(3.937 in)
Description

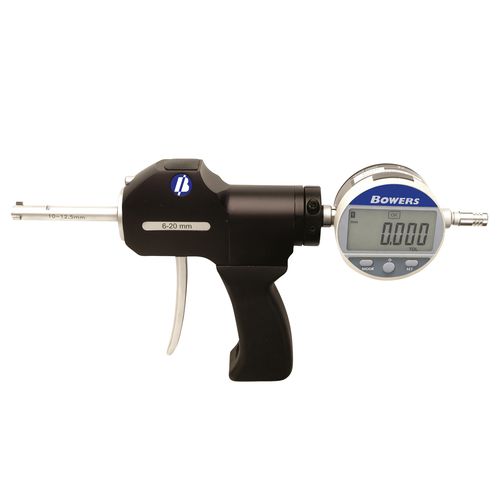

The XTHSY Pistol Grip bore gauge is a useful option for those requiring pistol ergonomics with a large digital indicator. The LCD digital indicator fits into a standard 8mm clamping shaft at the rear of the pistol-grip. Pistols of this type are available for all measuring heads in the XT range.
Features
Standard: DIN 863 - Part 4
• Ergonomically designed pistol grip body
• Functions include 2 pre-set memories, tolerance indicator lights and mm/inch conversion
• Proximity RS-232 and Powered Opto Ouput facility
• Self centring measuring heads with tungsten carbide contact points above 12.5mm
• Setting rings provided with each instrument complete with traceable certification
• Blind bore measurement on all instruments above 12.5mm
• Bluetooth indicator option available
