Inside micrometer SBM-Dovetail
digitalpistol grip

inside micrometer
inside micrometer
inside micrometer
inside micrometer
inside micrometer
Add to favorites
Compare this product


Characteristics

Measurement
inside
Display
digital
Other characterisitcs
pistol grip

Description

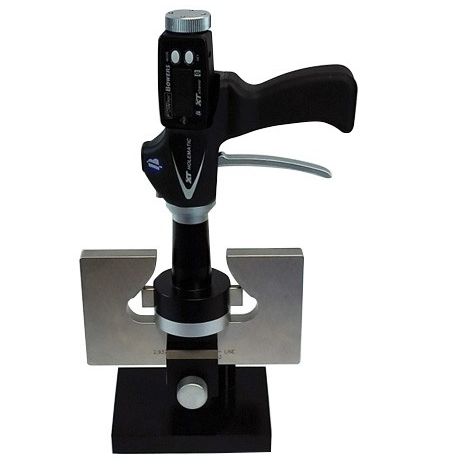

The Challenge: Bowers was approached by a well-known industrial turbine manufacturer to develop a method of measuring dovetail slot width and position in a circular component. The datum for the measurements was taken from the shoulder of the slot replicating the final ‘In Service’ blade datums. The Solution: Bowers' Special Applications Team developed a special 2 Point head solution based on the popular Bowers XT system. The system incorporates tungsten carbide ball contacts for high accuracy. The Bowers XT digital readout offers the capability to send data for SPC and part traceability. Advantages over Competitor Solutions: The Bowers dovetail variable gauge is able to output the actual size and position as opposed to competitors' attribute (Go / No Go) gauging. The gauge has a long working life and doesn’t wear like attribute gauging. Potential Industries: • Aerospace • Nuclear • Turbines • Power Generation

Catalogs

No catalogs are available for this product.

See all of Bowers Group‘s catalogs
