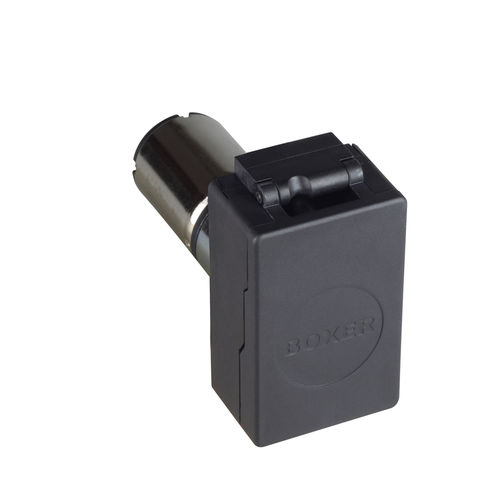

Peristaltic pump 29QQ waterwith DC motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- water
- Operation
- with DC motor
- Mobility
- stationary
- Domain
- industrial
- Voltage
- 24 V, 12 V
- Other characteristics
- compact, OEM, flow, miniature, floating, sensor
- Flow
Max.: 0.052 l/min
(0.01374 us gal/min)Min.: 0.0002 l/min
(0.00005 us gal/min)- Pressure
1 bar
(14.504 psi)- Power
2.5 W, 3.8 W
(0 hp, 0.01 hp)- Input diameter
0.5 mm, 1 mm, 2 mm
(0.02 in, 0.039 in, 0.079 in)- Length
75 mm, 79 mm, 89 mm, 92 mm
(3 in, 3 in, 4 in, 4 in)- Width
31.2 mm
(1.23 in)- Height
48 mm, 49 mm
(1.89 in, 1.93 in)
Description
The 29QQ Series is Boxer's most compact miniature peristaltic pump which covers the flow range of 10 µl to 50 ml/min in a body width of 31.2 mm. With an full range of options and tube sets, over 800 different configurations are available. Additionally, OEM customisation is offered.
› DC motor (with planetry gear), 12 or 24 V DC each with 4 different speeds
› Stepper motor with option of assembled Pico driver
› Rear or front panel mount option, including mounting gasket
› Speed sensor / encoder
› Lid close sensor
› Floating saddle to increase tube life
› 4 rollers
Tube sets should be ordered separately.
