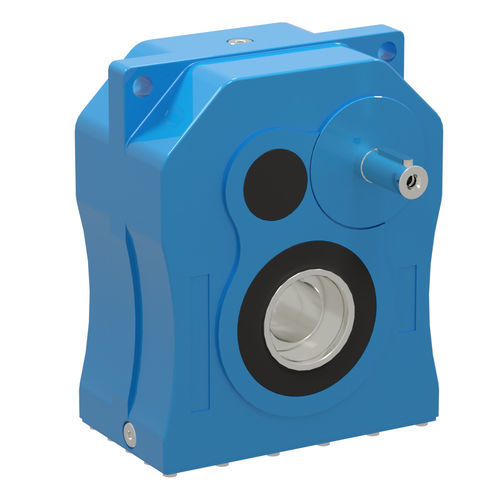

Helical gearbox T SERIES

parallel-shaftsolid-shafthollow-shaft

The TT Series gearboxes are helical-geared, two-staged, output-shaft-mounted units with a hollow output shaft and a monoblock housing. Housing material is GG20 cast iron and gears are made of high-quality case-hardened steel. They are mounted to the machine using torque support arms. Connection holes on the gear units are used for mounting. Supplied without motor, the units are belt-driven. When selecting gear units the overhung load acting on the input shaft must be checked against the permissible values on the performance tables according to input speed. • Monoblock housing design • Torque arm option • GG20 – GG22 cast iron housing • Backstop • Suitable for different mounting positions
