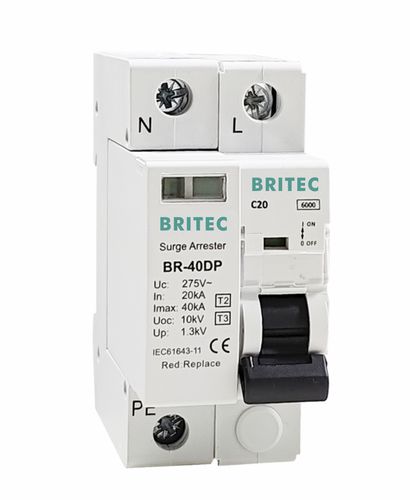

Type 3 surge arrester BRCB-15/30/40
class IIIfor electrical installationsremote signaling

Type 3 surge arrester - BRCB-15/30/40 - Britec Electric Co., Ltd - class III / for electrical installations / remote signaling
Type 3 surge arrester - BRCB-15/30/40 - Britec Electric Co., Ltd - class III / for electrical installations / remote signaling
Type 3 surge arrester - BRCB-15/30/40 - Britec Electric Co., Ltd - class III / for electrical installations / remote signaling - image - 2
Add to favorites
Compare this product
Go to the Britec Electric Co., Ltd website for more information

Characteristics

Type
type 3, class III
Applications
remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for electrical control panels
Other characteristics
gas discharge tube, with fault indication, compact, single-phase, N-PE, single-pole, varistor, combined, modular, DIN rail, fast-response, low-voltage, AC, thermoplastic
Voltage

230 V, 275 V

Primary current

15,000 A, 20,000 A

Max.: 40,000 A

Min.: 5,000 A

Description

Conforms to IEC 61643-11 and EN61643-11. This series is surge protection combined with MCB. Simple DIN rail mounting IP20 Protection. Remote signaling selectable. BRCB combined surge arrester can provide surge protection for TN system. The reaction time of less than 25 ns. Color of visible window shows operating status, normal green, red fault. Patented fast tripping mechanism.
