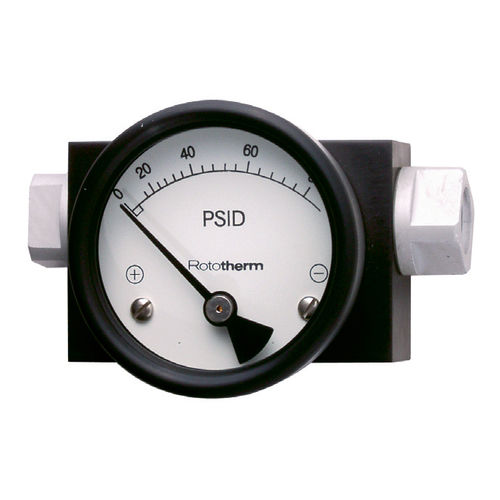

Differential pressure gauge 200DPG

dialthreadedpanel-mount

Rototherm’s quality differential pressure gauges are designed to measure the difference in pressure between two points in a system and show it on a single dial gauge. A magnetic movement senses the differential pressure. The gauge has separate pressure and indicating chambers. These diaphragm instruments can indicate small values of differential pressure even when used at high line pressures. They provide instantaneous and continuous information regarding system conditions helping in eliminating premature servicing of equipment, avoid unscheduled down time of costly processes and can detect abnormal system conditions. Migration Minor from high to low port Range First marking on the scale 20% of the FSD Wetted parts Dial size in inch /mm 2”, 2.5”, 3.5”, 4”, 4.5”, 6”/ 50, 63, 80, 100, 115, 150 mm Mounting Direct, front flange, 2” pipe & surface mounting Seals Buna-N, Viton & EPDM ‘O’ rings Window Float glass(Std.), toughened glass, acrylic & safety glass. Porting In-line, rear, bottom, in-line & bottom Over range protection Up to the max. working pressure from high & low side
