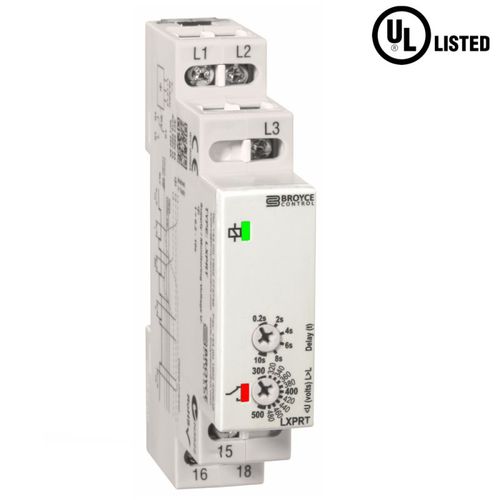

Under-voltage protection relay LXPRT

phase sequencephase lossSPDT

• Under voltage monitoring • Monitors own three phase, 3-wire supply • Detects incorrect phase sequence and phase loss • Adjustable Trip levels and Time delay • SPDT Relay output • 17.5mm wide, DIN Rail mount • UL Listed The product monitors it’s own three-phase supply and for the output relay to energise, all phases must be present, the phase sequence correct and the phase to phase voltages above the set trip level. If any of these conditions are not met, the relay will de-energise. • Monitoring function: Under voltage • Monitored supply voltage*: 77 – 143V, 161 – 300V, or 280 – 520VAC • Under trip level: 83 – 138V, 173 – 288V, 300 – 500VAC • Hysteresis: ≈2% • Time delay: 0.2 – 10s • Output: SPDT 8A @ 250V (AC1) • Dimensions(mm): W:17.5 x H:89 x D:66.5
