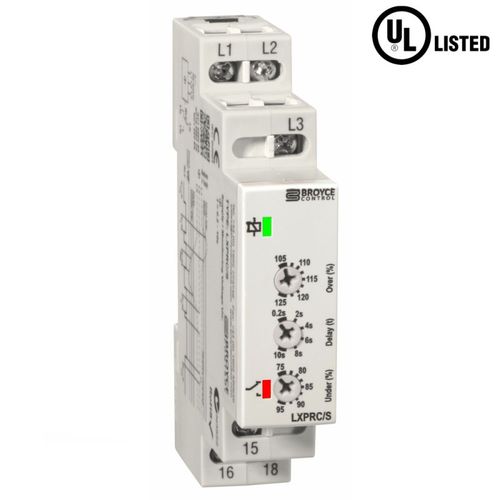

Three-phase protection relay LXPRC/Sover-voltageunder-voltagephase sequence
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- over-voltage, under-voltage, phase sequence, phase loss
- Network
- three-phase
- Mounting
- DIN rail
- Other characteristics
- time delay, adjustable
- Trigger voltage
110 V, 208 V, 380 V, 400 V, 415 V
Description
- Under and Over voltage monitoring (Window)
- Monitors own three phase, 3-wire supply
- Detects incorrect phase sequence and phase loss
- Adjustable Trip levels and Time delay
- SPDT Relay output
- 17.5mm wide, DIN Rail mount
- UL Listed
The product monitors it’s own three-phase supply and for the output relay to energise, all phases must be present, the phase sequence correct and the phase to phase voltages within the set Under/Over trip levels. If any of these conditions are not met, the relay will de-energise.
Specification
- Monitoring function: Under/Over voltage
- Trip level: Under: 75 – 95%/Over: 105 – 125%
- Hysteresis: ≈2%
- Time delay: 0.2 – 10s
- Output: SPDT 8A @ 250V (AC1)
- Dimensions(mm): W:17.5 x H:89 x D:66.5
