Mobile sprayer DRS

waterstainless steel

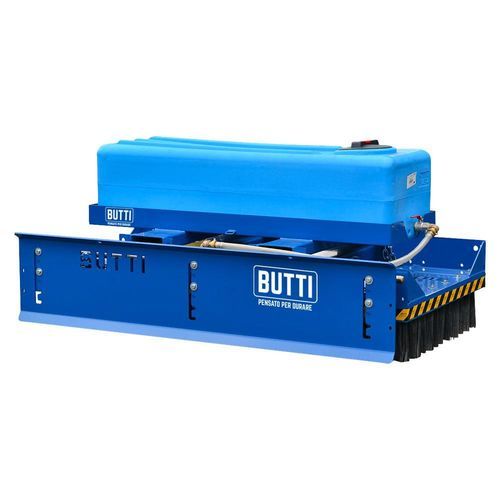

Description The DRS kit is an accessory designed to limit dust dispersion during industrial cleaning operations with Industrial brooms. The system comprises a 300 L tank mounted on the broom, piping and a stainless-steel sprinkler that distributes water in front of the sweeping area to dampen material and reduce dust formation and dispersion.

Kit components

• 300-litre tank
• Brass valve and fittings
• Stainless-steel sprinkler
• Water distribution piping
• 10 mm thick adjustable protective blade (protects the system and guides material during cleaning)

Operation While the broom operates, water from the tank is delivered through the sprinkler ahead of the sweeping area. Moistening the material reduces dust generation and dispersion, improving surface cleaning and visibility in the work area.

Application sectors

• Manufacturing industry
• Steelworks
• Foundries
• Recycling plants
• Waste collection platforms
• Industrial yards
• Material treatment centres
• Logistics

Versions available
Model | Volume (l) | Broom model
868C0320 | 300 | Industrial Classic
868C0325 | 300 | Industrial Large
868C0330 | 300 | Industrial Extra Large

Technical specifications

• Tank volume: 300 litres
• Sprinkler material: stainless steel
• Valve and fittings: brass
• Protective blade thickness: 10 mm (adjustable)
• Includes piping and water distribution system
• Compatible with: Industrial Classic, Industrial Large, Industrial Extra Large
• Function: reduces dust dispersion during sweeping by wetting material ahead of the broom
