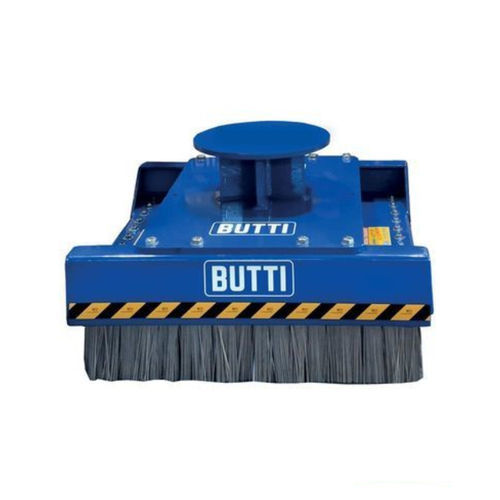

Industrial broom 86 series

Description
Grab-mounted sweepers are designed to clean industrial surfaces and operational areas using hydraulic grabs or grapples, enabling the collection and movement of machining swarf, scrap and other materials from yards or plant areas. These sweepers feature a dedicated upper attachment for the grab, allowing lifting and operation via the grapple instead of the conventional forklift fork pockets.

Benefits and use
With this configuration the sweeper can be positioned and handled directly by the grab, making it particularly useful in material recovery facilities, waste treatment centers and scrap yards. Compared with standard Industrial and Eco Strong sweepers, the brushes on grab-mounted versions are denser and intended for intensive use with a mechanical grab. Demonstration video available.

Main features

• Grab attachment: upper connection designed for pick-up by a hydraulic grab/grapple to enable lifting and movement by a grapple or crane with a grab, facilitating rapid repositioning across work areas.
• Heavy-duty frame: frame made from high-strength steel to ensure reliability and long life even in demanding working environments.
• Easy to operate: once placed on the ground by the grab, the sweeper can be dragged or pushed during cleaning operations to collect materials scattered on industrial surfaces.

Available versions

• Industrial grab sweeper: fitted with high-quality harmonic steel brushes for collecting heavy materials and metal swarf.
• Eco Strong grab sweeper: fitted with high-quality polypropylene brushes suitable for collecting light, bulky materials such as paper, plastic or chips.

Grab attachment dimensions

• Anti-slip disc: Ø 400 mm
• Effective pin diameter: Ø 270 mm
• Pickup height: H 300 mm

Collectible materials

• Metal scrap
• Machining swarf
• Plastic
• Glass
• Paper and cardboard
• Industrial debris

Application sectors
Recycling and material recovery plants, scrap yards, steelworks, foundries, metallurgical industries, waste treatment centers, industrial yards and ecological platforms.

Model table
Model | L (mm) x P (mm) x H (mm) | Number of filaments | Rows | Tare (kg)
865C10AR | 1000 x 1100 x 770 | 33600 | 24 | 500
866S1010AR | 1000 x 1100 x 770 | 28800 | 24 | 400

Characteristics / technical specifications

• Dedicated upper attachment for hydraulic grab (pickup for grapple/crane)
• High-strength steel frame
• Brush types: harmonic steel (Industrial) or polypropylene (Eco Strong)
• Pickup dimensions: disc Ø 400 mm; effective pin Ø 270 mm; pickup height 300 mm
• Models and tare: 865C10AR (tare 500 kg), 866S1010AR (tare 400 kg)
• Suitable for collecting heavy and light materials in industrial environments and recovery plants
