Storage sprinkler system 868C03 series

water

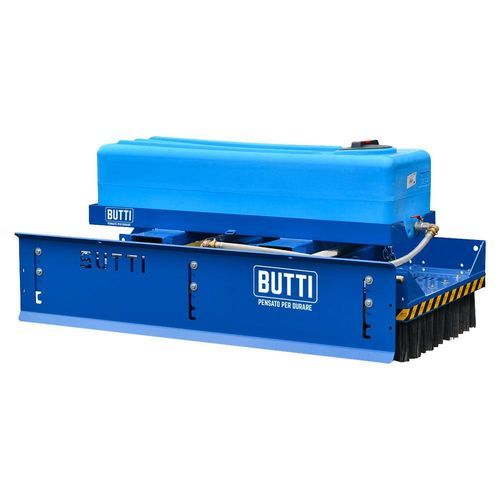

Description The DRS kit – 'dust reduction system' is an accessory designed to limit dust dispersion during industrial cleaning operations performed with Industrial sweepers. The system comprises a 300-litre tank mounted on the sweeper that feeds an irrigation network with piping and a stainless-steel sprinkler, distributing water in front of the sweeping zone to suppress dust generated during material handling. This improves working conditions and visibility in the work area.

Compatibility The kit is designed for installation on Industrial Classic, Industrial Large and Industrial Extra Large models.

Kit components

• 300-litre tank
• Brass tap and fittings
• Stainless-steel sprinkler
• Water distribution system (piping)
• Adjustable 10 mm wear-protection blade to protect the system and help channel material during sweeping

Operation While the sweeper is in use, water from the tank is distributed ahead of the sweeping area via the sprinkler. Moistening the material reduces dust generation and dispersion, improving surface cleaning and on-site visibility.

Application sectors

• Manufacturing industry
• Steelworks and foundries
• Recycling plants and material recovery facilities
• Industrial yards and logistic hubs
• Waste transfer stations and treatment centres

Versions available 868C0320 | 300 L | Industrial Classic
868C0325 | 300 L | Industrial Large
868C0330 | 300 L | Industrial Extra Large

Technical characteristics / specifications

• Tank capacity: 300 litres
• Sprinkler: stainless steel
• Fittings: brass
• Protection blade: 10 mm thickness
• System: piping and sprinkler for front water distribution ahead of sweeping area
• Purpose: reduction of dust formation and dispersion
• Compatible models: Industrial Classic, Industrial Large, Industrial Extra Large
• Product codes: 868C0320 (Classic), 868C0325 (Large), 868C0330 (Extra Large)
