Hydraulic shear

for scrap metalfor cablesfor metal

Description

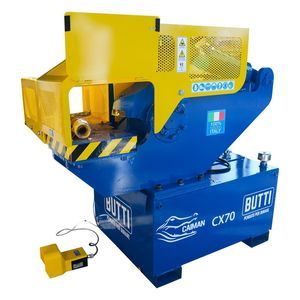

The CAIMAN shears are professional hydraulic machines designed for cutting ferrous metals and copper cables in scrap recovery and metal processing plants. They combine controlled cutting cycles, operator safety systems and industrial-grade components to ensure repeatable results in recycling and demolition applications.

Operation
Material is fed manually through a lateral protection door and clamped by a plate-holding press to stabilize the workpiece during cutting. The cutting cycle is initiated via an operator-presence foot pedal, ensuring continuous control by the operator.

Machine composition

• Main frame with hydraulic reservoir
• Cutting shear assembly
• Hold-down press assembly for material clamping
• Cutting zone guard
• Operator-presence foot control
• Electrical control panel
• Three-phase electrical supply system

Safety and cycle control

• Industrial-grade frame construction
• Dual safety with reinforced work table
• Adjustable bar stop
• Cutting-zone guard preventing access to hazardous parts and automatically disabling operation when open
• Immediate stop via emergency stop button
• Operator-presence foot control
• High-strength cutting blade
• Hydraulic hold-down press for material stabilization
• High-pressure hydraulic system
• Electrical control panel with emergency stop
• Designed for single-operator use

Power and operation

• Electrical supply: 400 V – 50 Hz
• Working cycle: manual
• Cut stroke adjustable via micrometric regulators

Cutting capacity
Capacities refer to structural steel S275JR and are indicated for four section types: flat bar, round bar, square profile and tube.

Cutting capacity table (Model | Blade length (mm) | Electric motor (kW) | Cutting force (ton) | Pressure (bar) | No-load cycles | Reservoir capacity (lt) | Dimensions (mm) | Weight (kg))
869C150 | 150 | 3 | 17 | 220 | 12 | 80 | 1100x800x1300 | 600
869C250 | 250 | 4 | 50 | 180 | 15 | 120 | 1350x900x1300 | 700
869C340 | 340 | 4 | 55 | 220 | 15 | 170 | 1500x1200x1340 | 1300

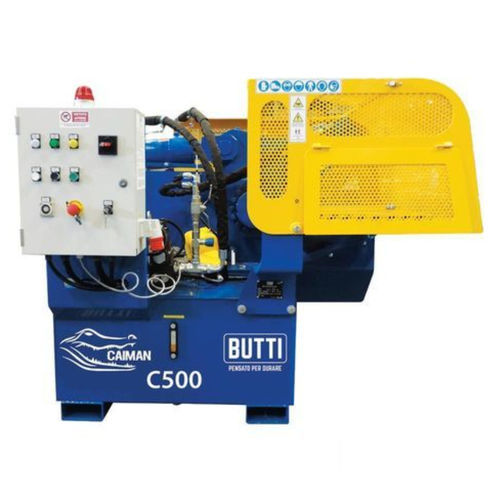

869C500 | 500 | 7.5 | 94 | 250 | 15 | 170 | 1750x1280x1400 | 1600
869C500X | 500 | 7.5 | 120 | 240 | 13 | 200 | 1760x1280x1420 | 1650
869C600 | 600 | 7.5 | 94 | 320 | 5 | 180 | 2000x1300x1500 | 1800
869C600X | 600 | 7.5 | 120 | 320 | 5 | 180 | 2000x1300x1500 | 1800

Application sectors
Scrap recovery and recycling, scrap processing plants, collection and recovery centers, metallurgical industries, industrial demolition, ferrous metalworking.

Technical features / specifications

• Hydraulic hold-down press on all models; model 869C150 available with both hydraulic and manual hold-down
• Hydraulic system sized for high cutting forces
• Operator-presence foot control
• Electrical control panel with emergency stop
• Three-phase power supply 400 V – 50 Hz
• Cut stroke adjustable via micrometric regulators
• Designed for single-operator intensive industrial use
