Hydraulic shear 869CX70

for scrap metalfor metalcopper

Description

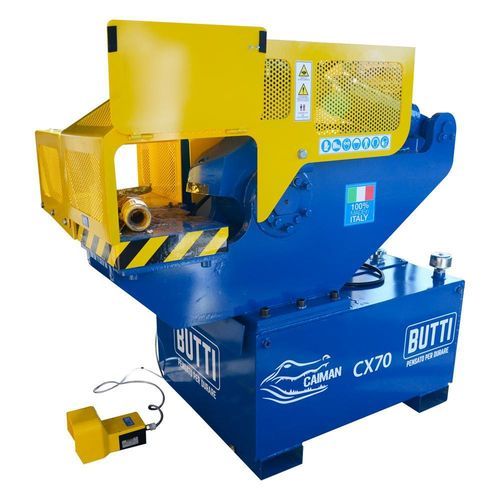

The Caiman CX70 shear (model 869CX70) is a professional hydraulic machine designed for cutting taps, valves and brass or copper components in non-ferrous metal recovery and processing operations. It separates metallic parts quickly and reliably to simplify downstream recycling and sorting.

Key features

• Integrated hydraulic tank and power unit
• High-strength cutting shear assembly
• Hydraulic plate clamp to stabilize workpieces
• Cutting area protection
• Electrical control panel
• Operator-present foot pedal control

Cutting system
The machine uses special steel blades with four cutting profiles adapted to different component geometries.

• Precise cutting of taps and valves
• Adapts to various component shapes
• Improves non-ferrous metal recovery efficiency
• Reduces material deformation during cutting

Safety and cycle control
The CX70 is built for safe industrial use with multiple integrated protections and user controls.

• Robust frame for continuous industrial operation
• Protection of the cutting area
• Hydraulic plate clamp to secure material
• Operator-present foot pedal control
• Emergency stop button
• Electrical control panel
• Designed for single-operator use
• Control system allows continuous monitoring of the cycle
• Power supply: 400 V – 50 Hz

Applications
Non-ferrous metal recovery and recycling; scrap processing plants; brass and copper recovery centers; tap and valve recovery; demolition and metal component separation; material recovery facilities.

Available versions
Model | Electric motor | Cuts per minute (max stroke) | Cutting force (ton) | Pressure (bar) | Dimensions (mm) | Operating weight (kg)
869CX70 | 4 kW 400 V 50 Hz | 8 | 50 | 180 | 1450x880x1400 | 1300

Technical specifications

• Model: 869CX70
• Electric motor: 4 kW, 400 V, 50 Hz
• Cuts per minute (max stroke): 8
• Cutting force: 50 ton
• Operating pressure: 180 bar
• Dimensions (LxWxH): 1450 x 880 x 1400 mm
• Operating weight: 1300 kg
• Special steel blades with four cutting profiles
• Integrated hydraulic tank and high-force hydraulic system
• Hydraulic plate clamp for workpiece locking
• Operator-present foot pedal and emergency stop
• Electrical control panel
• Designed for single-operator use and intensive duty cycles
• Complies with applicable safety standards (CE marked)
