Heavy-load cradle 17 series

Description

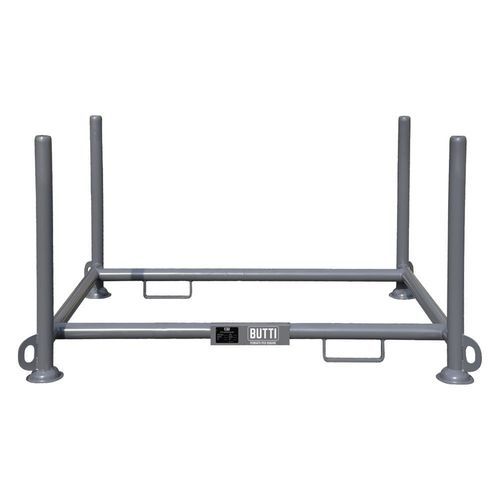

Construction cradle D60 in steel, designed for building sites where structural strength, handling stability and operational safety are required. Built with tapered Ø60 mm tube 3 mm thick, it offers a robust solution for on-site transport and material handling even under intensive use. Engineered for efficient handling, it features 4 reinforced lifting lugs for crane attachment, ensuring stable hooking, and welded anti-slip forklift pockets to reduce slipping during forklift engagement and improve control and safety. The structure is stackable to optimize storage in depot and on site.

Technical features

• High-quality steel construction
• Tapered tube Ø60 mm, 3 mm thickness
• 4 reinforced lifting lugs for crane
• Welded anti-slip forklift pockets
• Stackable structure
• Designed for heavy-duty working conditions

Operational benefits

• Maximum robustness for high stresses and continuous use
• Safer handling with crane and forklift
• Reduced slipping during forklift engagement due to welded pockets
• Stackable design for more efficient storage and logistics

Applications

• Transport and handling of materials on construction sites
• Loading/unloading with crane
• Rapid handling with forklift
• Organization and storage of equipment and materials in the work area

Applicable sectors
construction sites, civil works, industrial construction, construction companies, precast manufacturing, major maintenance, site logistics.

Available versions (table)
Model — L x W x H1 x H2 (mm) — Tare (kg) — Capacity (kg) — Weight at full load (kg)
170N — 1440 x 715 x 880 x 720 mm — 34 kg — 500 kg — 534 kg
171N — 1440 x 1040 x 880 x 720 mm — 37 kg — 1000 kg — 1037 kg

Characteristics / technical specifications

• Commercial name: Construction cradle D60
• Material: high-quality steel
• Tube: tapered Ø60 mm
• Tube thickness: 3 mm
• Lifting: 4 reinforced lugs for crane
• Forklift engagement: welded anti-slip pockets
• Design: stackable structure for optimized storage
• Available versions and sizes: 170N (1440x715x880x720 mm), 171N (1440x1040x880x720 mm)
• Tare and capacity indicated in table (e.g. 171N: tare 37 kg, capacity 1000 kg, weight at full load 1037 kg)
